25HP
Balance you can feel at the tiller
The 25HP is a smooth thing to sit behind. Its SOHC in-line two-cylinder block displaces 432 cc on a 65.0 × 65.1 mm bore and stroke at 9.1 : 1 compression, and that combination stays calm and evenly balanced right through the rev range rather than coming alive at one end of it. Across the range dry weight runs 56 kg – 70 kg, which is how it delivers the big-engine feel without the big-engine weight.
Peak output is 18.4 kW at the propeller shaft, geared 2.08 (27/13) so the thrust turns up early rather than only at the top of a 5000 – 6000 r/min full-throttle range; idle drops to 850 – 950 r/min. Simple F-N-R shifting and VTS speed control keep the helm uncomplicated, and Digital Network Gauge compatibility puts speed, efficiency and performance on a screen instead of in your head.
DETAILS
ABOUT 25HP
ENGINE
| ➢ CATEGORY | Versatile |
|---|---|
| ➢ Engine type | SOHC, In-line 2 cylinders |
| ➢ Displacement | 432 cc |
| ➢ Bore x stroke | 65.0 × 65.1 mm |
| ➢ Compression ratio | 9.1 : 1 |
| ➢ Fuel induction system | Fuel injection |
| ➢ Lubrication system | Wet sump |
| ➢ Engine oil capacity | 1.1 L / 1.0 L (with / without oil filter replacement) |
| ➢ Ignition / advance system | TCI |
| ➢ Alternator | 16 A |
DIMENSIONS
| ➢ Overall length | MH, WH, WHP: 1130 mm, WHT, WHD: 1129 mm |
|---|---|
| ➢ Overall width | 378 mm |
| ➢ Overall height | S: 1106 mm, L: 1233 mm, X: 1320 mm |
| ➢ Engine transom height | S: 424 mm, S (ET, WT, WHT): 429 mm, L: 551 mm, L (ET, WT, WHT, WHD): 553 mm, X: 640 mm |
| ➢ Steering angle | 45 degrees each direction |
| ➢ Dry weight | 56 kg – 70 kg |
ADDITIONAL FEATURES
| ➢ Maximum propeller shaft output | 18.4 kW |
|---|---|
| ➢ Full throttle operating range | 5000 – 6000 r/min |
| ➢ Idling speed | 850 – 950 r/min |
| ➢ Shallow water drive | Manual: 2 positions, ET, WT: PTT: variable position |
| ➢ Gear shift | F-N-R |
| ➢ Gear ratio | 2.08 (27/13) |
| ➢ Gear oil capacity | 0.370 L |
SERENITY
Closer to the shallows

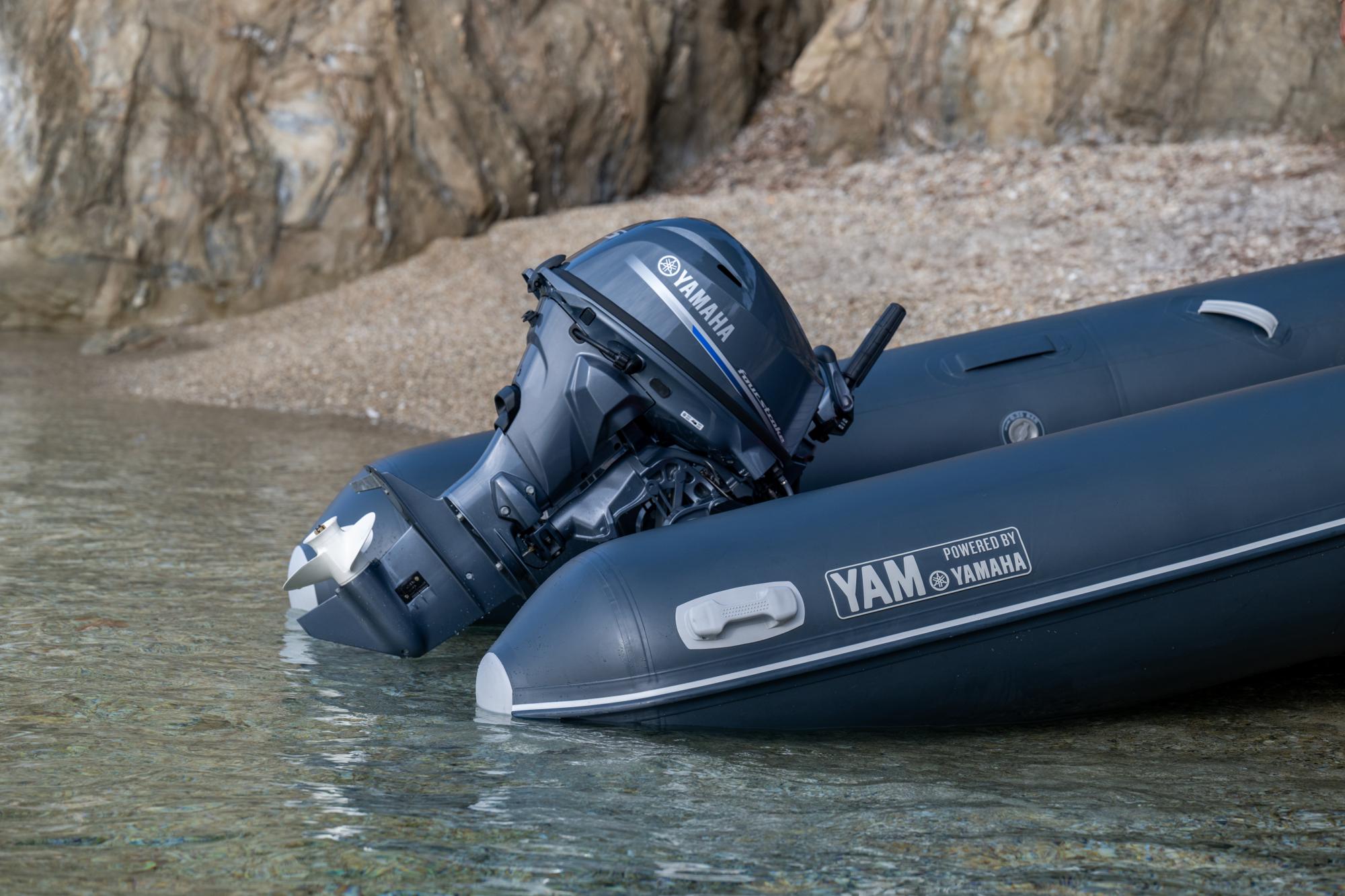

Shallow water drive lifts through two manual positions, or to any variable position on power trim and tilt (ET, WT) models, so a hidden cove stops being a gamble on the depth sounder. Steering swings 45 degrees each direction for deliberate, tight turns. And the fresh water flushing system asks for nothing but a hose — no running engine, and no corrosion creeping in over the winter.
DESIGN
ENGINE

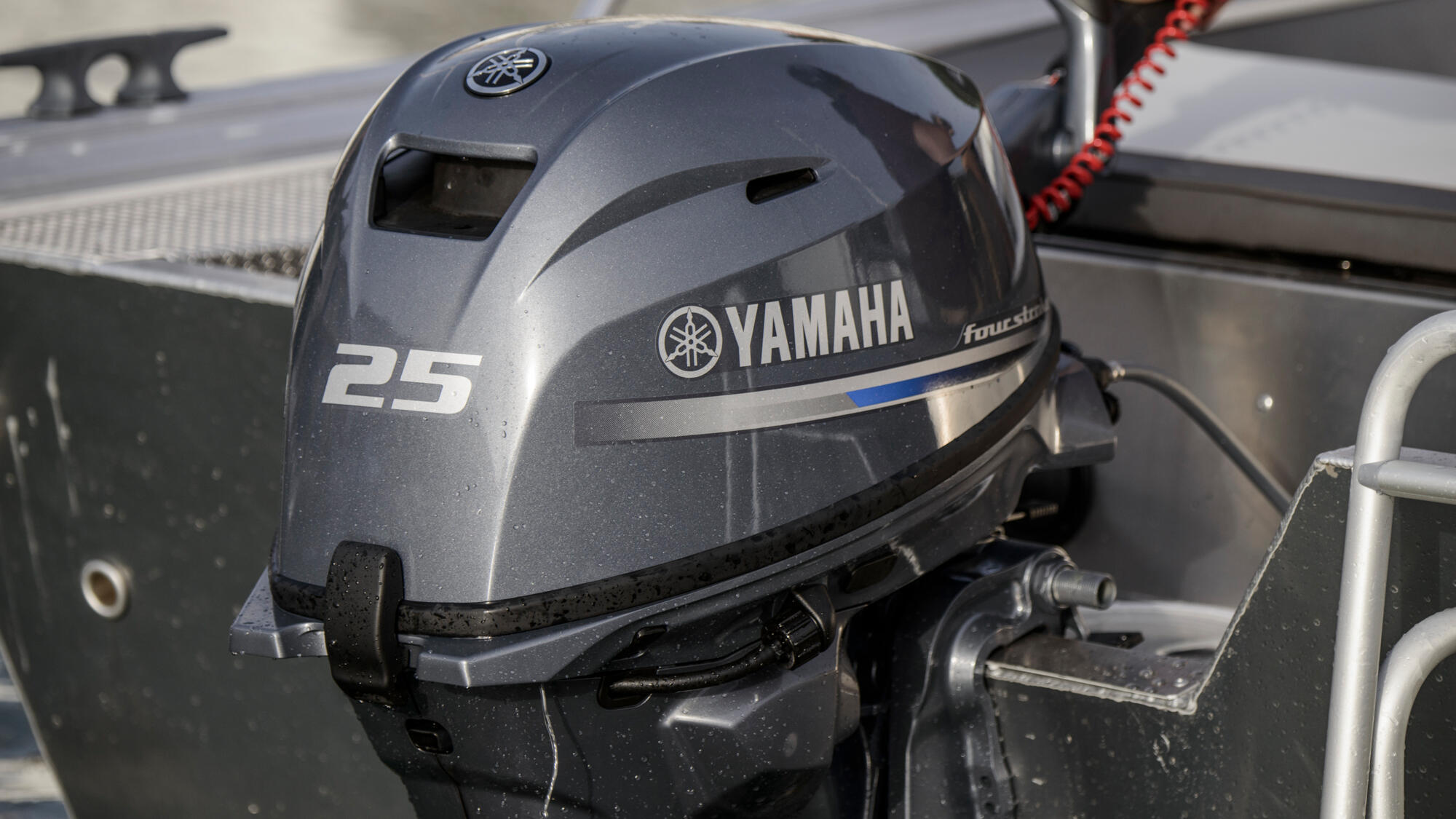

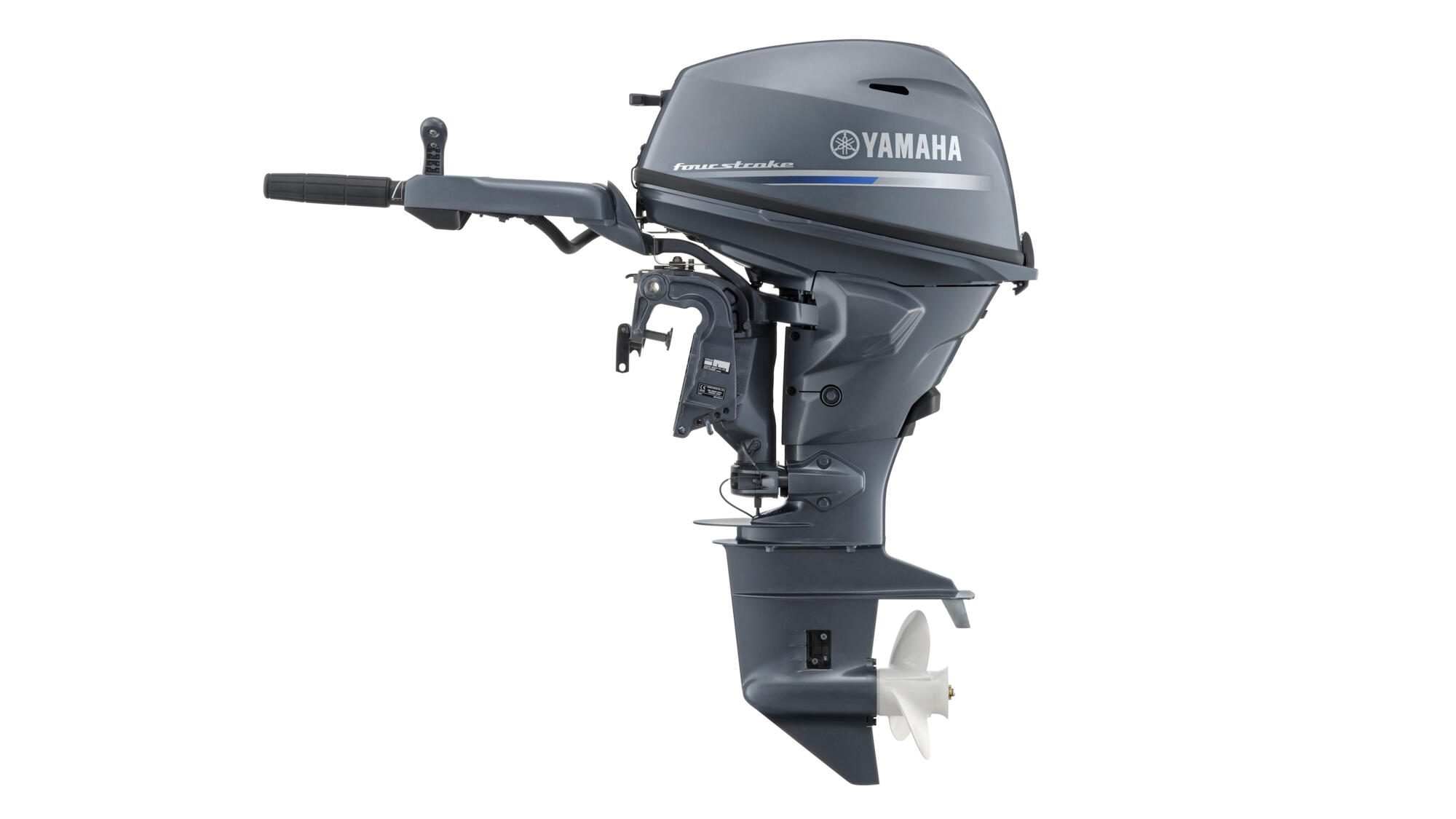

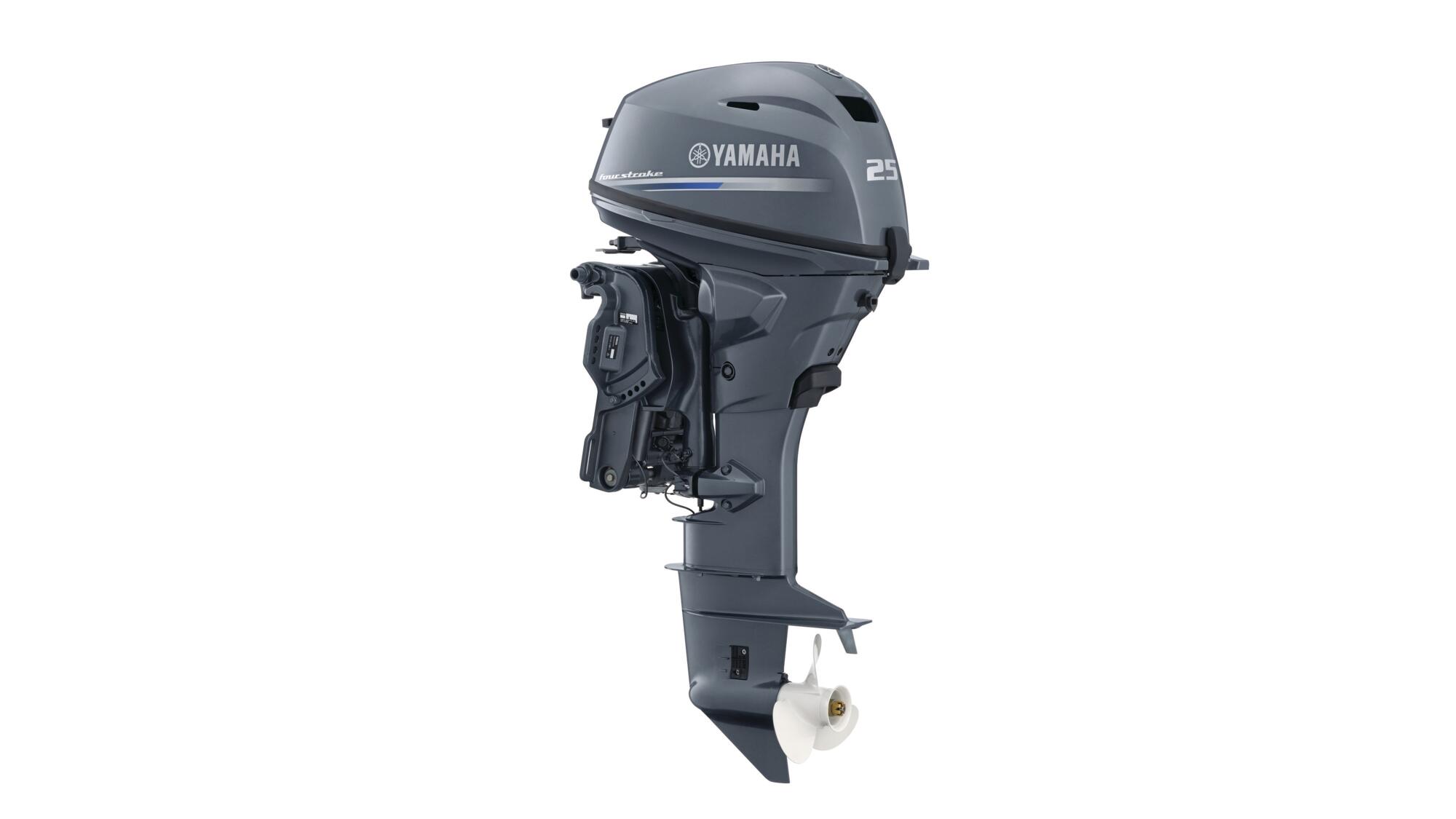

One piece, no compromise. The sculpted top cowling seals watertight over that compact twin — smart, sturdy and unmistakably Yamaha — while a 16 A alternator keeps the battery ahead of the day’s demands. The large multi-function tiller handle is worth having too: it turns the whole helm into a single grip.
WARRANTY
5 YEAR PROMISE
Enjoy Yamaha’s industry-leading limited warranty, offering up to 5 years of peace of mind. The 25HP is built to exacting standards with proven dependability. Whether you’re navigating calm bays or deep offshore waters, Yamaha’s legacy of excellence keeps you covered.
