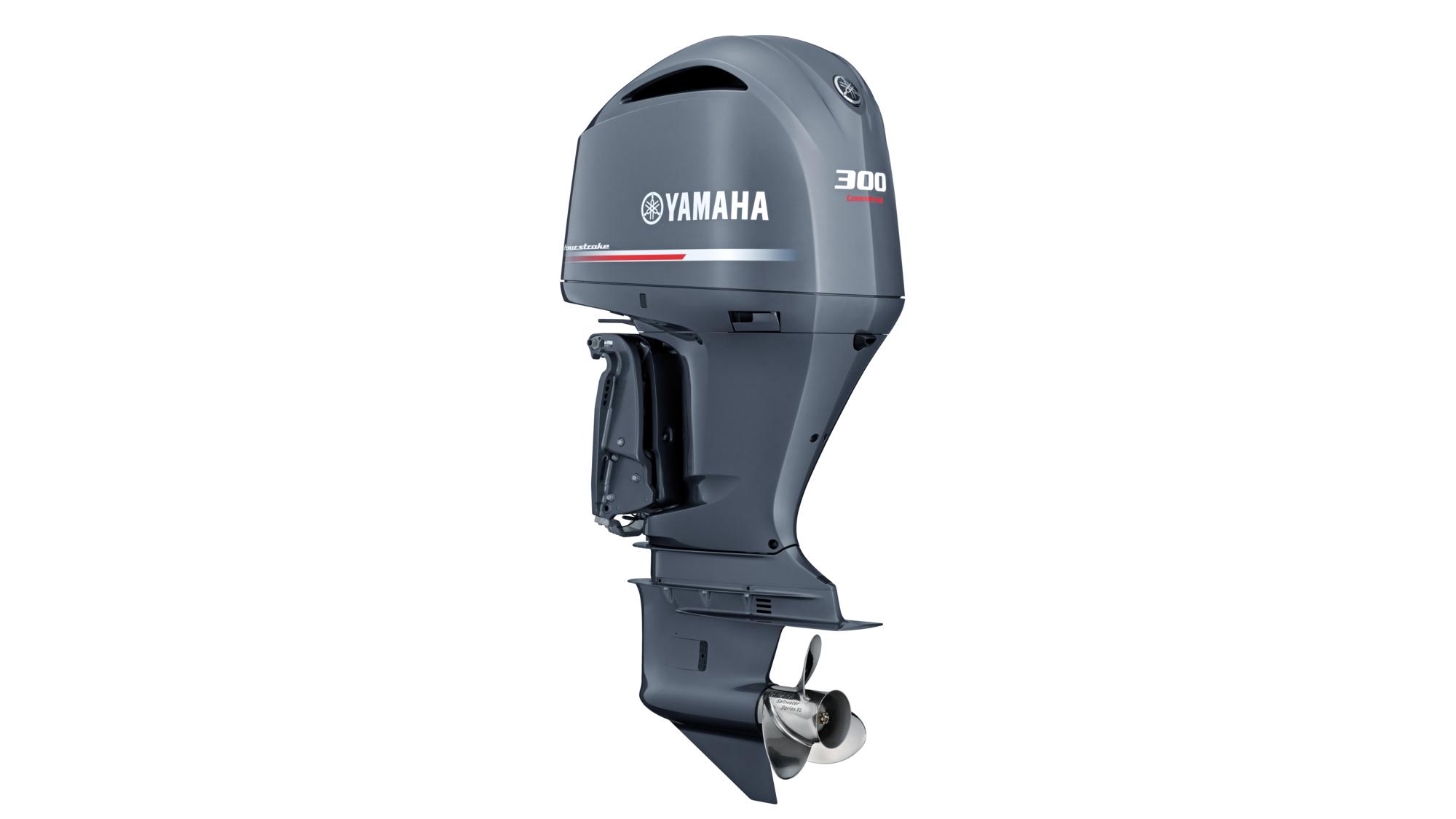

300HP V6 COMMERCIAL
For the days without gaps

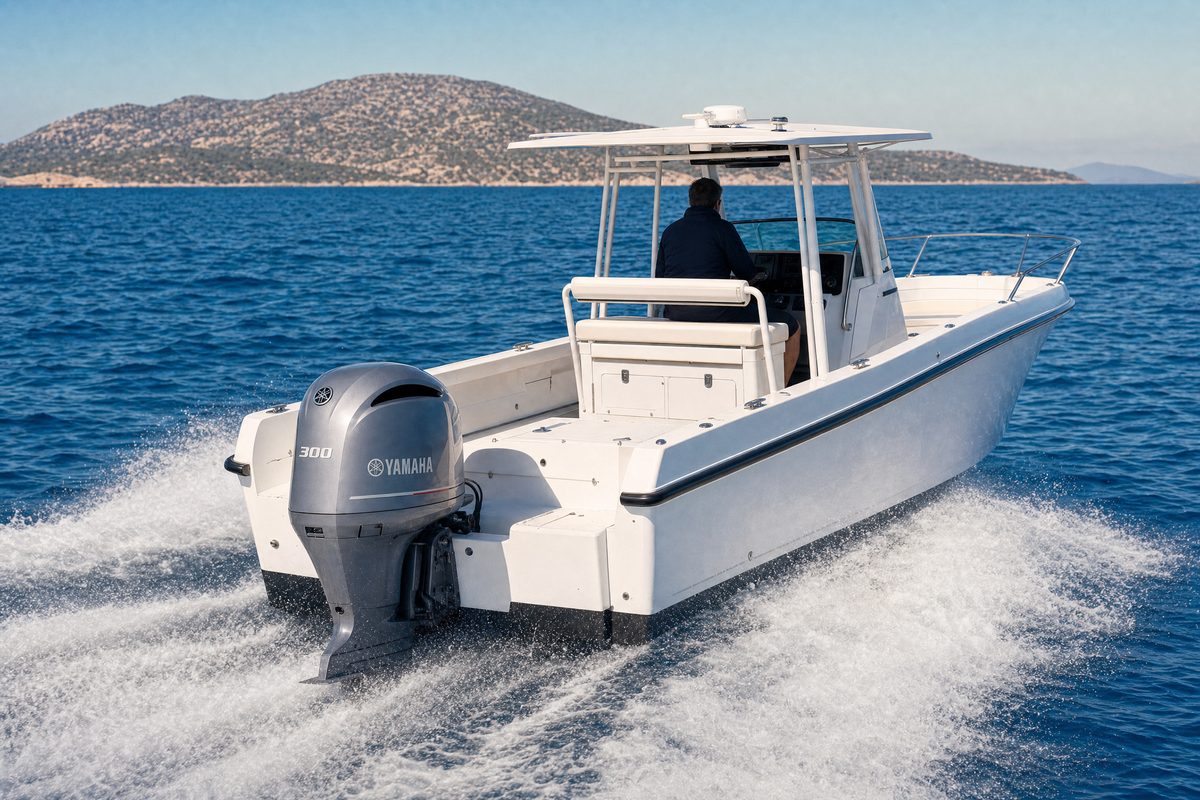

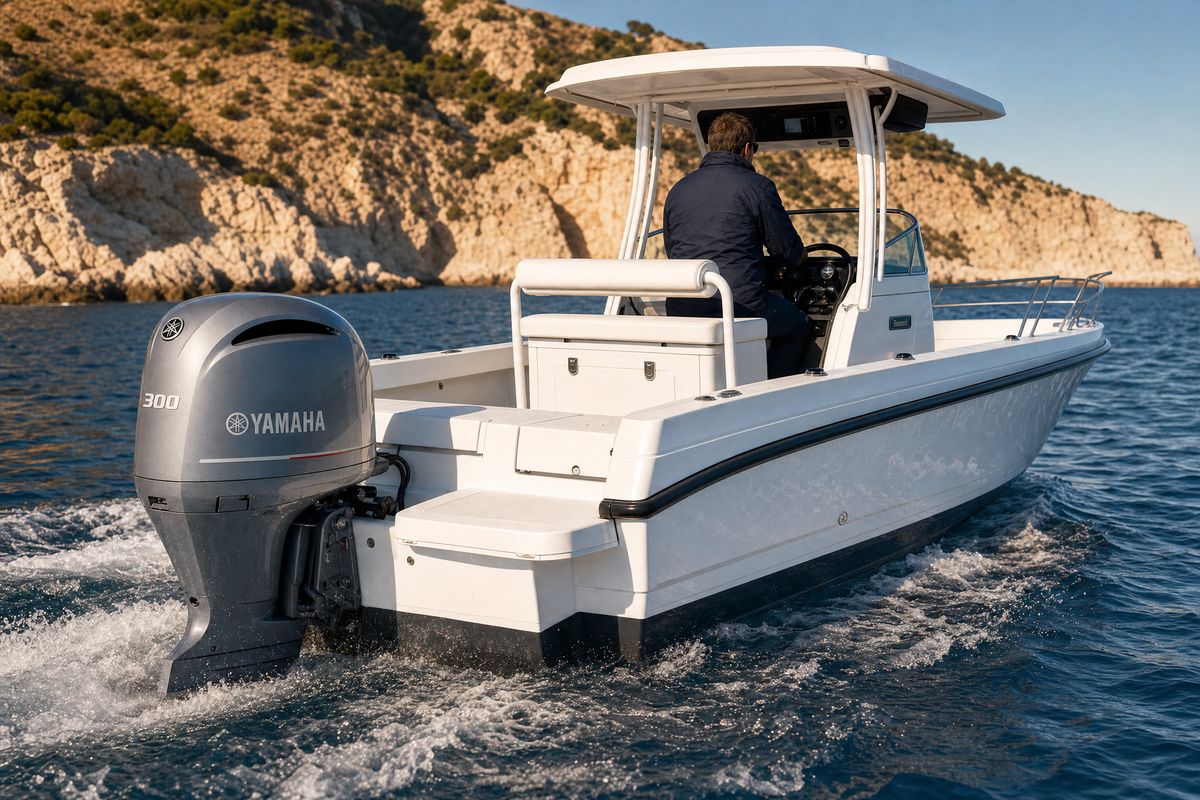

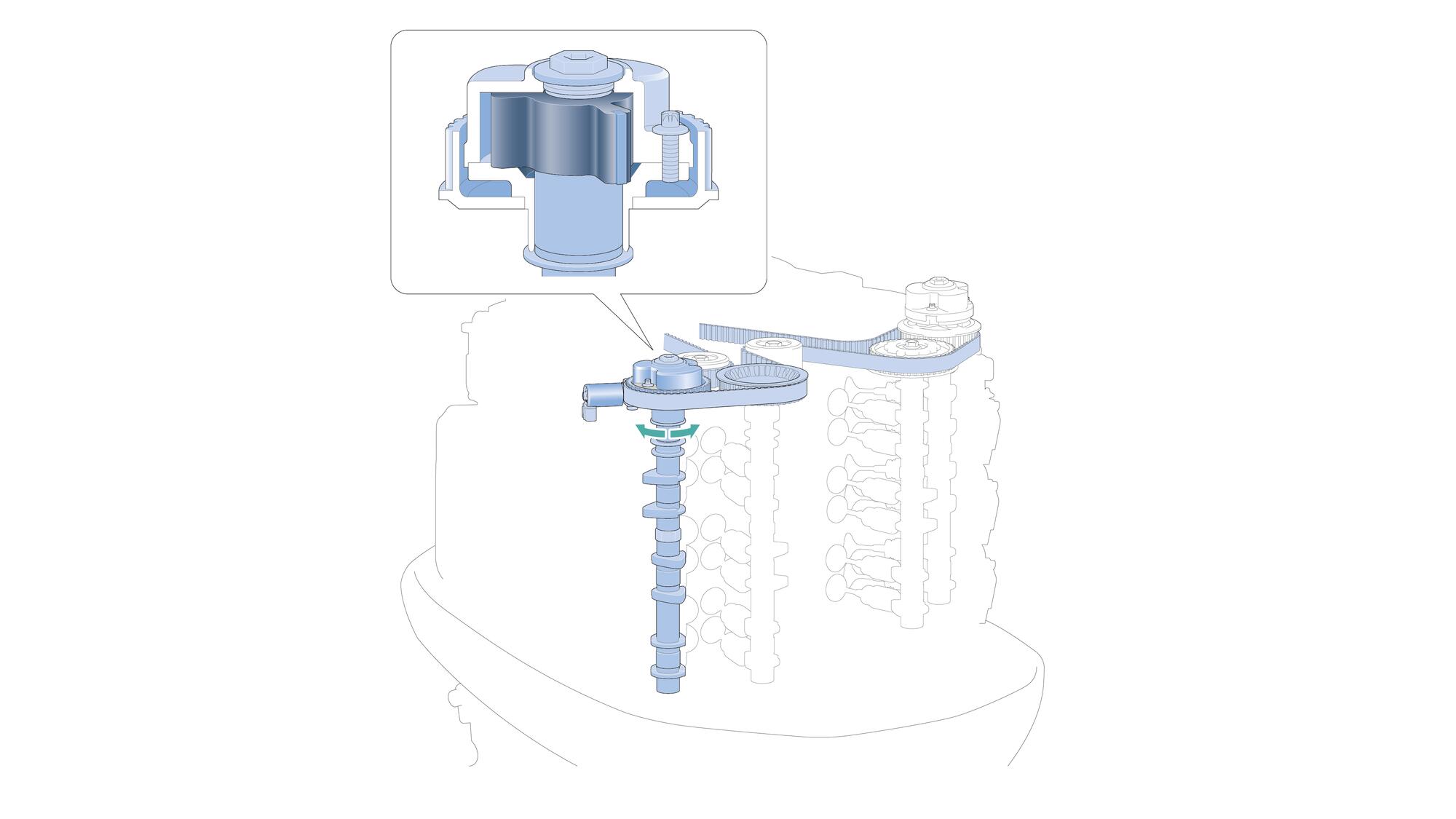

Nothing about this engine is tuned for a short burst. Variable camshaft timing keeps the 4169 cc, 24-valve DOHC V6 pulling through the low and mid range, where a heavy boat spends its day, and a 1.73 (26/15) gear ratio puts all 220.6 kW where a laden hull can use it: leaving the berth loaded, holding a working speed, turning round for the next run.

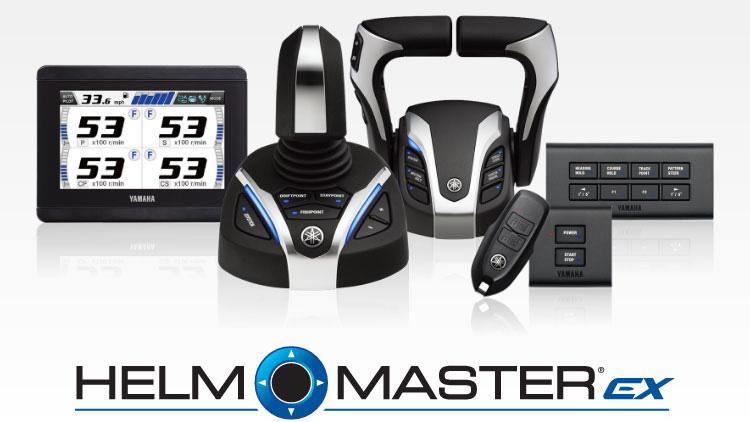

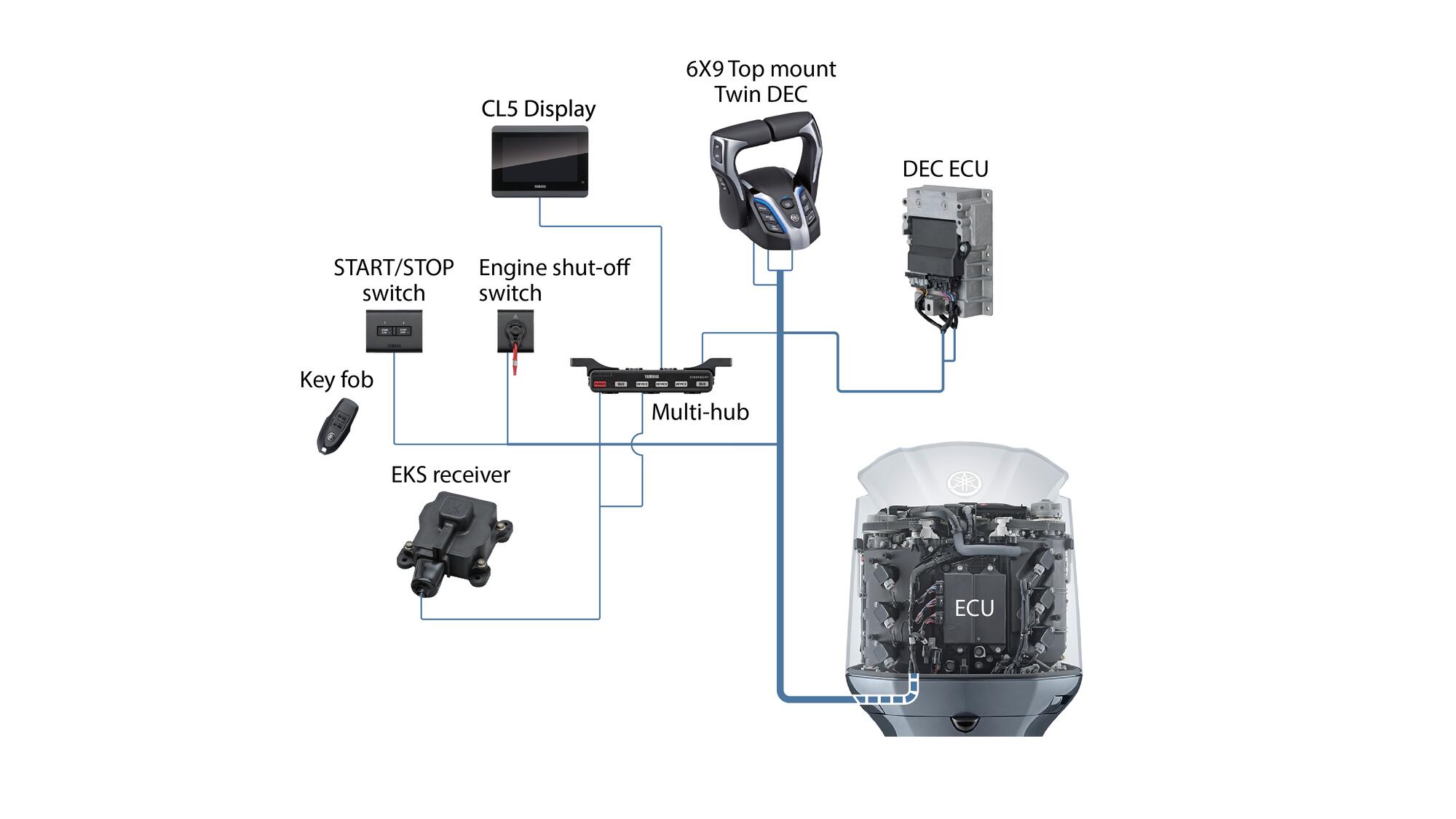

Control is what decides how a shift ends. Digital electronic control puts throttle and shift on wires rather than cables, so the tenth berthing of the day costs the helmsman no more than the first. Helm Master® EX takes it further when the work asks for it — from a plain DEC helm up to joystick control for a tight quay — and 32 degrees of lock each way does the rest.
DETAILS
ABOUT 300HP V6 COMMERCIAL
ENGINE
| ➢ CATEGORY | Commercial Marine Engines |
|---|---|
| ➢ Engine type | 24-Valve, DOHC with VCT, 60 deg. V |
| ➢ Displacement | 4169 cc |
| ➢ Bore x stroke | 96.0 × 96.0 mm |
| ➢ Compression ratio | 10.3 :1 |
| ➢ Fuel induction system | Fuel injection |
| ➢ Lubrication system | Wet sump |
| ➢ Engine oil capacity | 6.3 L/ 6.0 L (with / without oil filter replacement) |
| ➢ Ignition / advance system | TCI |

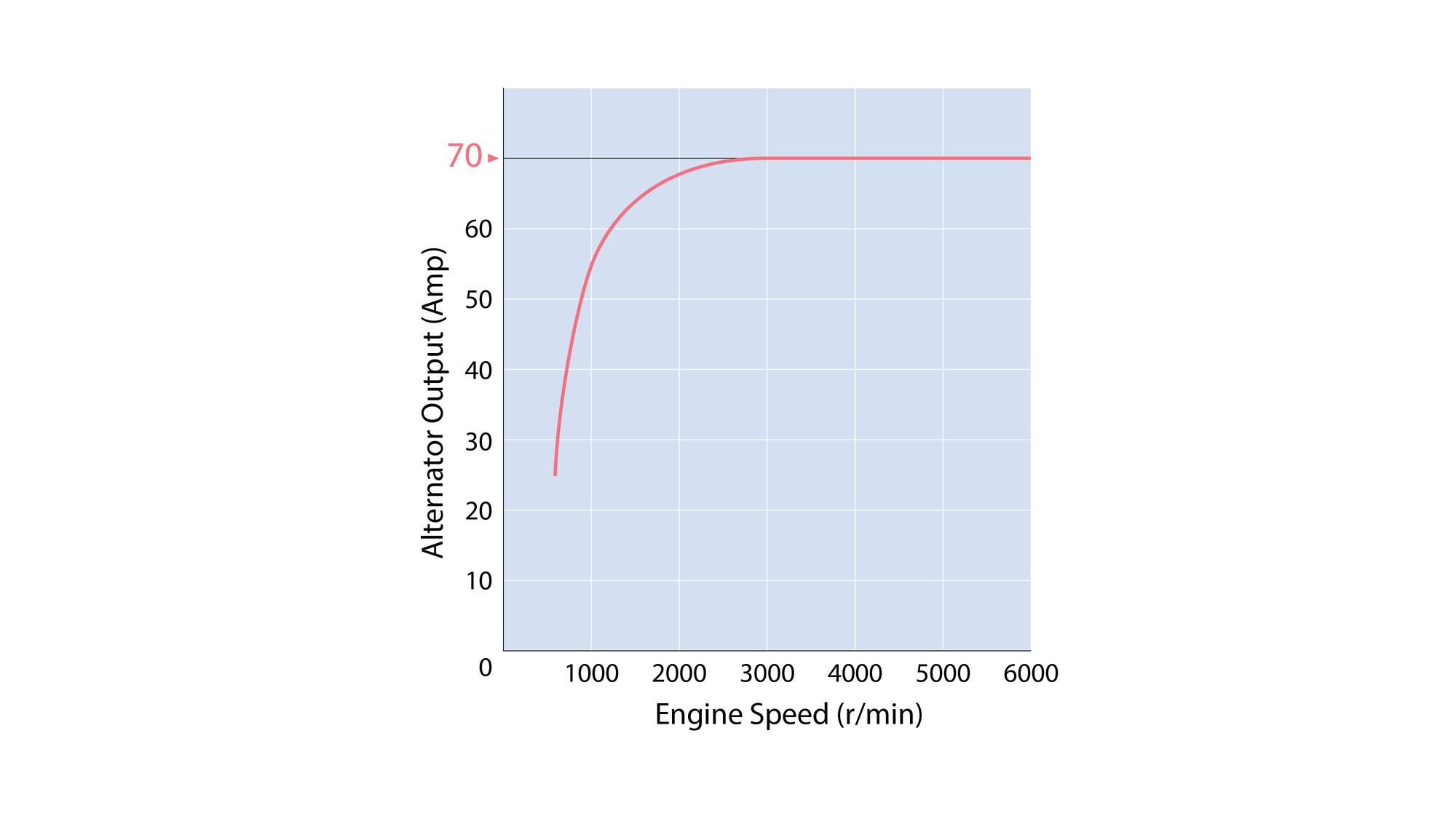

| ➢ Alternator | 70 A (battery charging: 55 A) |
DIMENSIONS
| ➢ Overall length | 958 mm |
|---|---|
| ➢ Overall width | 634 mm |
| ➢ Overall height | X: 1915 mm, U: 2042 mm |
| ➢ Engine transom height | X: 642 mm, U: 769 mm |
| ➢ Steering angle | 32 deg. each direction |
| ➢ Dry weight | 269 – 276 kg |
ADDITIONAL FEATURES
| ➢ Maximum propeller shaft output | 220.6 kW |
|---|---|
| ➢ Full throttle operating range | 5000 – 6000 r/min |
| ➢ Idling speed | 650 – 750 r/min |
| ➢ Shallow water drive | PTT: variable position |
| ➢ Gear shift | F-N-R |
| ➢ Gear ratio | 1.73 (26/15) |
| ➢ Gear oil capacity | F: 1.480 L / FL: 1.328 L |
SERENITY
Service intervals you can plan

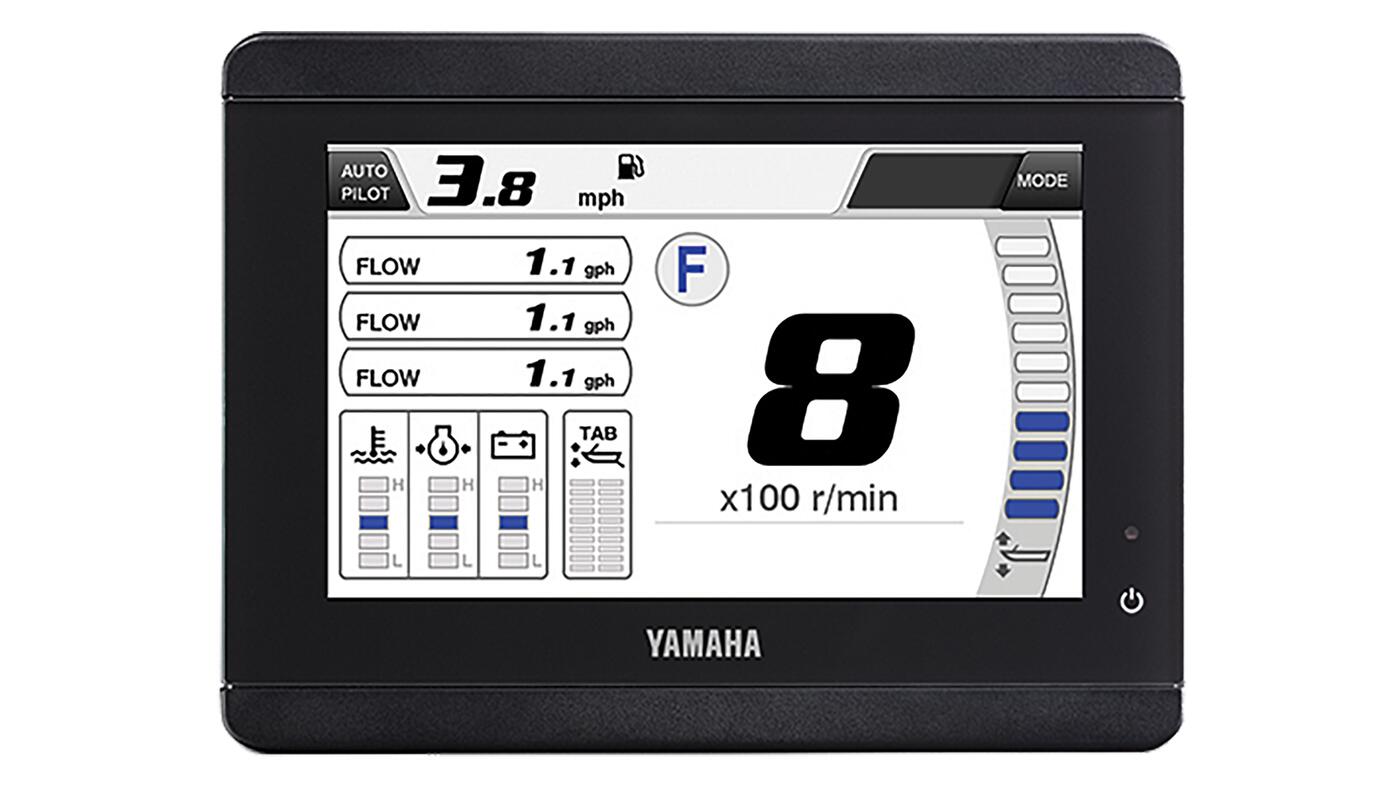

Wet-sump lubrication keeps the oil system simple, and a service takes 6.3 L or 6.0 L depending on whether the filter goes with it — a job the crew can plan around rather than lose a day to. Optional digital electric steering trades hydraulics for wiring, with nothing to bleed or top up, and the optional CL5 colour display puts engine data in front of whoever has the wheel.
DESIGN
ENGINE

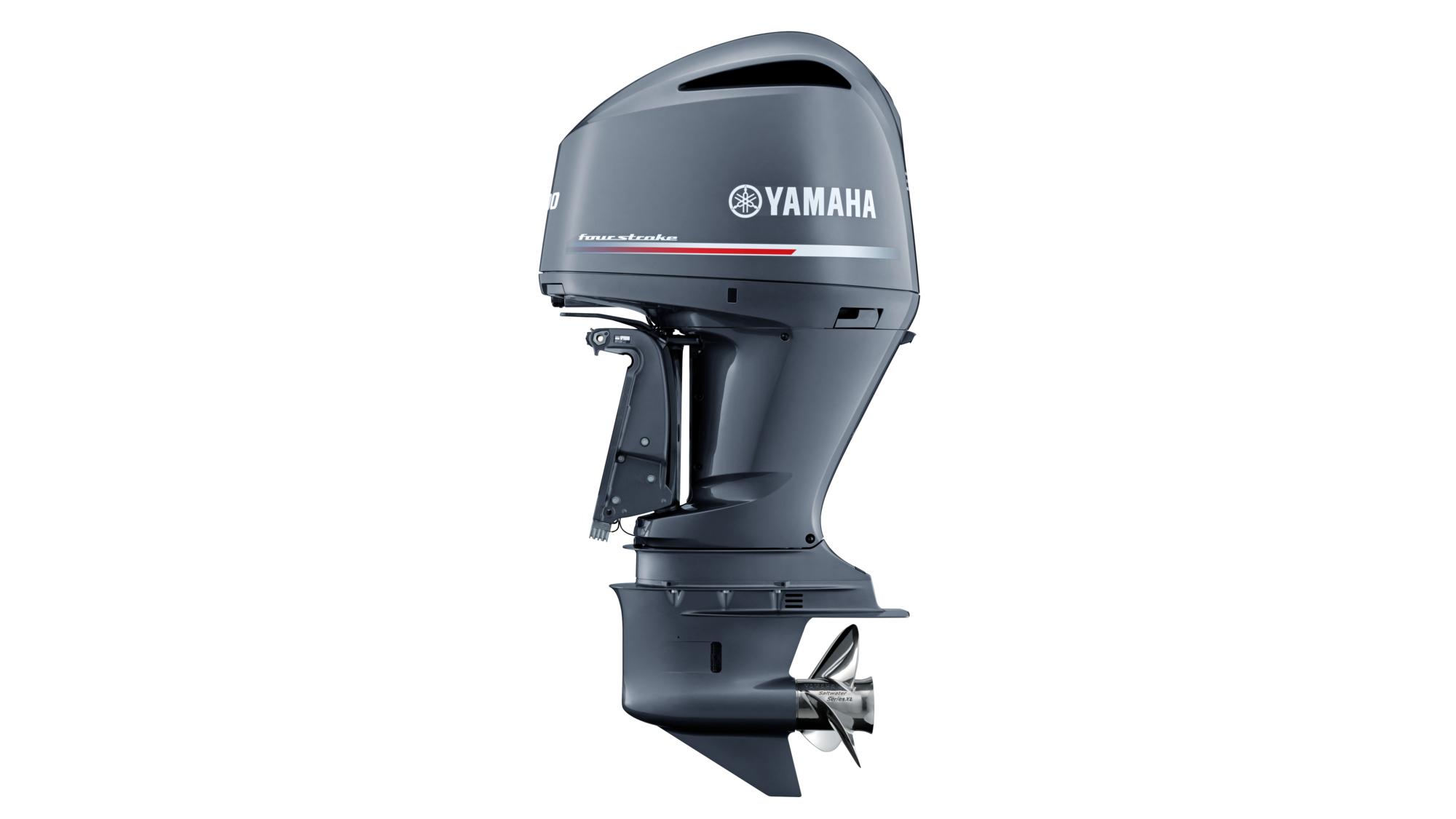

958 mm of overall length, 634 mm across and 269 – 276 kg dry — a footprint that fits working transoms rather than dictating them. X sits at 642 mm and U at 769 mm, 1915 mm and 2042 mm overall, so the 300HP V6 COMMERCIAL rigs single or multiple, and the shallow water drive steps the leg to any variable position for a landing with nothing under it.
WARRANTY
5 YEAR PROMISE
Enjoy Yamaha’s industry-leading limited warranty, offering up to 5 years of peace of mind. The 300HP V6 COMMERCIAL is built to exacting standards with proven dependability. Whether you’re navigating calm bays or deep offshore waters, Yamaha’s legacy of excellence keeps you covered.
