Experience the Yamaha V MAX SHO 150hp—where cutting-edge technology meets unparalleled performance. Designed for those who demand efficiency and power, this engine delivers smooth acceleration and exceptional reliability for every marine adventure.
V MAX SHO 150HP
Redefining Marine Excellence
The Yamaha V MAX SHO 150hp stands as a testament to Yamaha’s commitment to excellence in marine engineering. Its 2.8-liter, 4-cylinder, 16-valve DOHC engine is meticulously designed to provide optimal performance, ensuring that every journey on the water is both powerful and efficient. The incorporation of Variable Camshaft Timing (VCT) and Electronic Fuel Injection (EFI) systems allows for precise control over fuel delivery and timing, resulting in smoother acceleration and reduced emissions.
Beyond its impressive performance metrics, the V MAX SHO 150hp is built with the user in mind. Its compact and lightweight design does not compromise on durability, offering a robust engine that is easy to install and maintain. The engine’s compatibility with Yamaha’s digital control systems ensures seamless integration with modern marine electronics, providing real-time data and diagnostics to enhance the boating experience.
DETAILS
ABOUT V MAX SHO 150HP
ENGINE
| ➢ CATEGORY | High Power (90 – 200hp) |
|---|---|
| ➢ ENGINE TYPE | 4-stroke |
| ➢ Displacement | 2,785cc |
| ➢ No. of cylinders / Configuration | 4/in-line, 16-valve, DOHC with VCT |
| ➢ Bore x stroke | 96.0 x 96.2 |
| ➢ Prop shaft output at mid range | 110.3kW / 150 HP |
| ➢ Full Throttle Operating Range | 5,000 – 6,000 RPM |
| ➢ Lubrication system | Wet sump |
| ➢ Fuel Induction System | EFI |
| ➢ Ignition / advance system |
TCI |
| ➢ Starter system | Electric with Prime Start™ |
| ➢ Gear ratio | 2.0 (28/14) |
DIMENSIONS
| ➢ Transom height | L: 516mm X:643mm |
|---|---|
| ➢ Oil pan capacity | 4.5 L / 4.3 L |
| ➢ Weight without propeller | 223kg |
ADDITIONAL FEATURES
| ➢ Control | Remote Control |
|---|---|

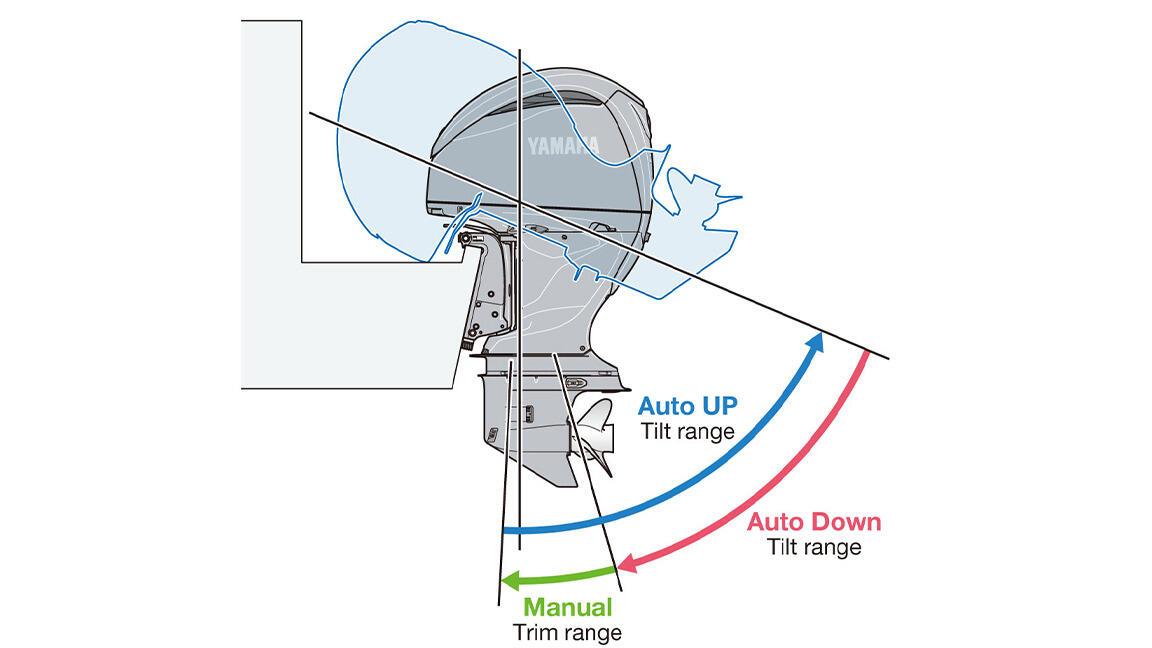

| ➢ Trim & Tilt method | Power Trim & Tilt |
| ➢ Light coil / Alternator Output | 12V – 50A w. rectifier / regulator |

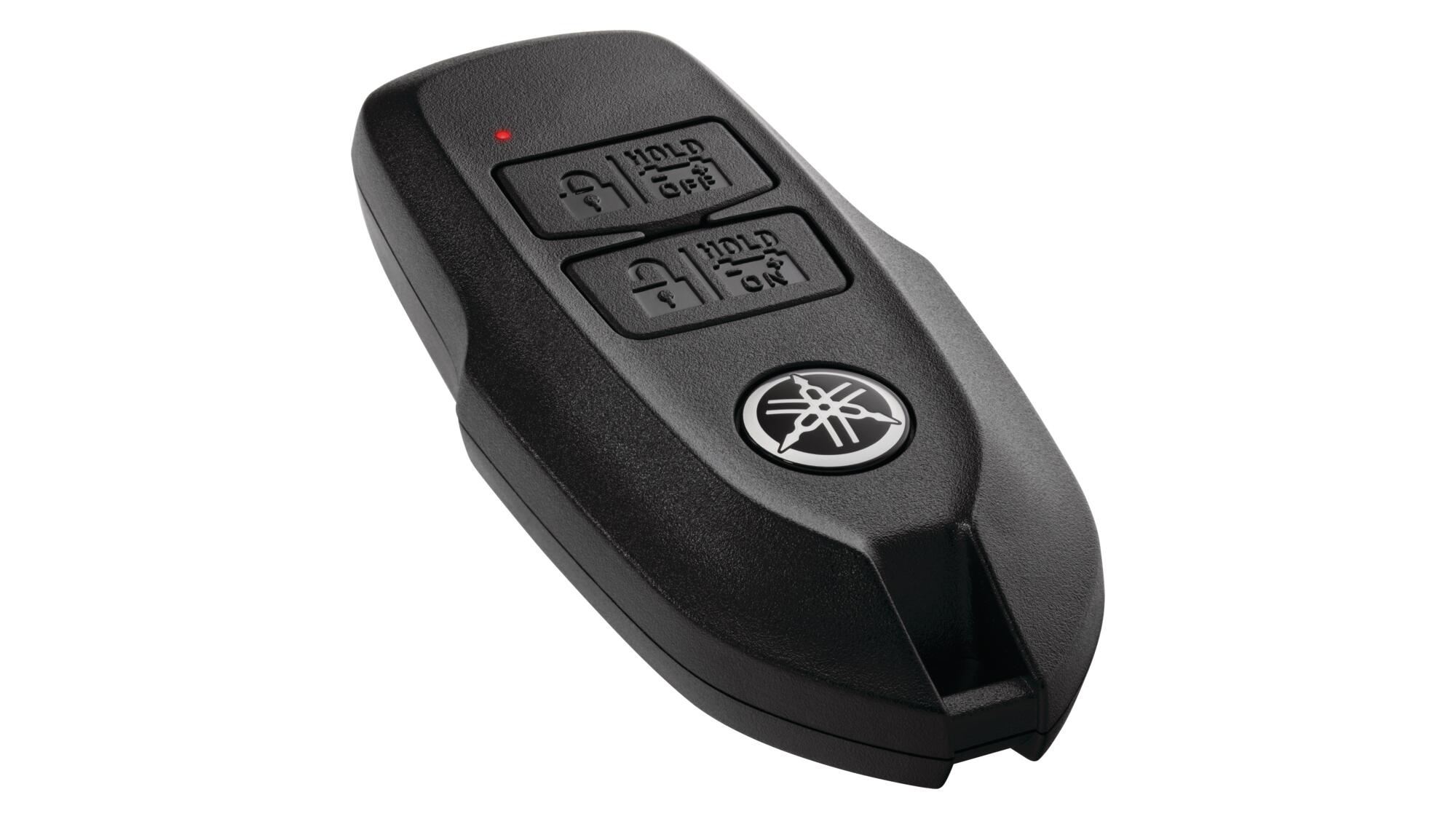

| ➢ Engine immobilizer | YCOP optional |

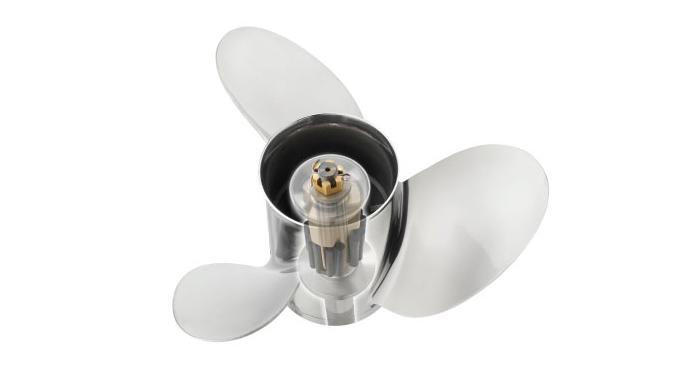

| ➢ Propeller | Optional |

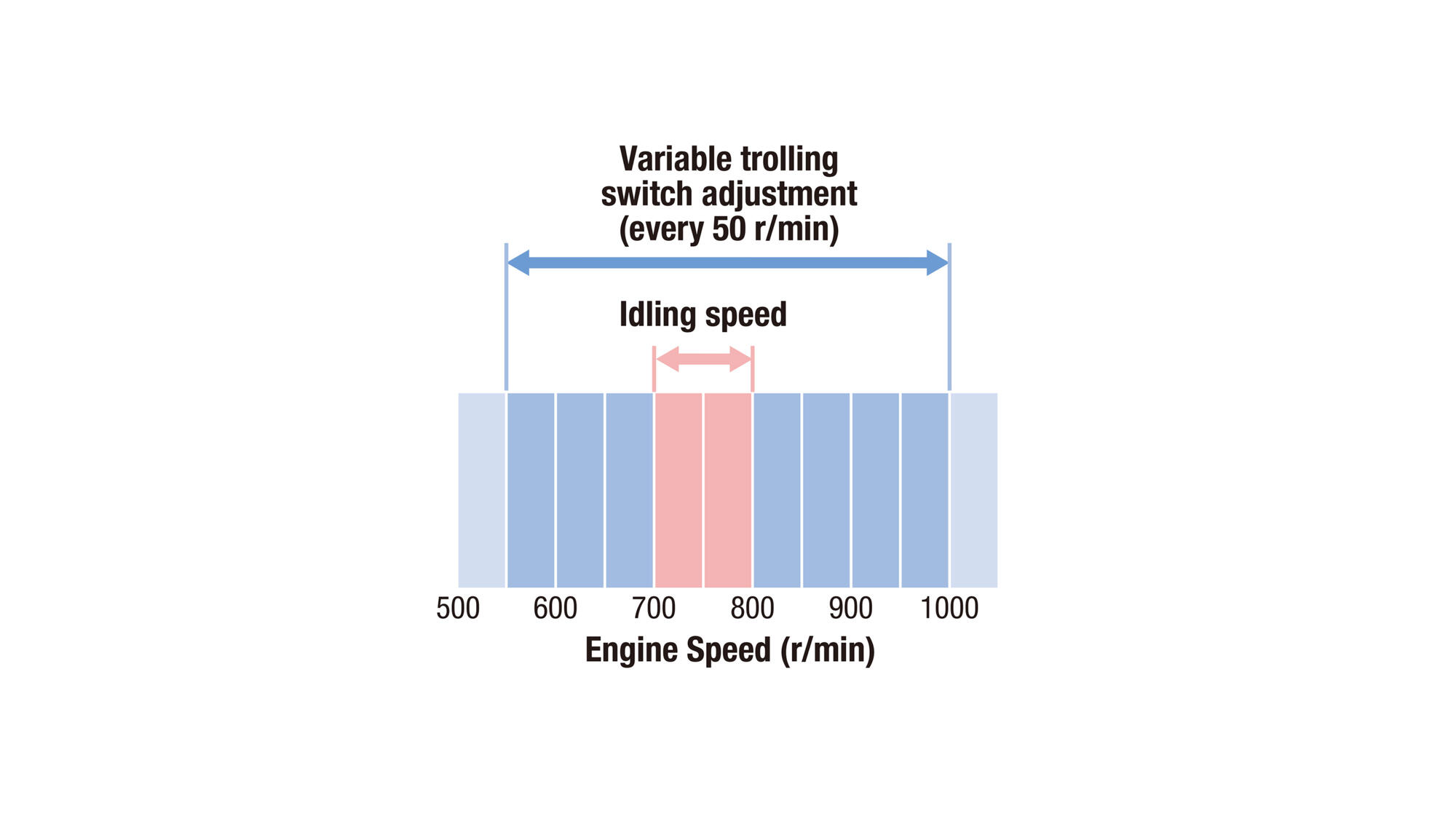

| ➢ Variable Trolling Speed | With DN Gauges |
| ➢ Shallow Water Drive | Standard |
| ➢ Tilt limitter | Optional |

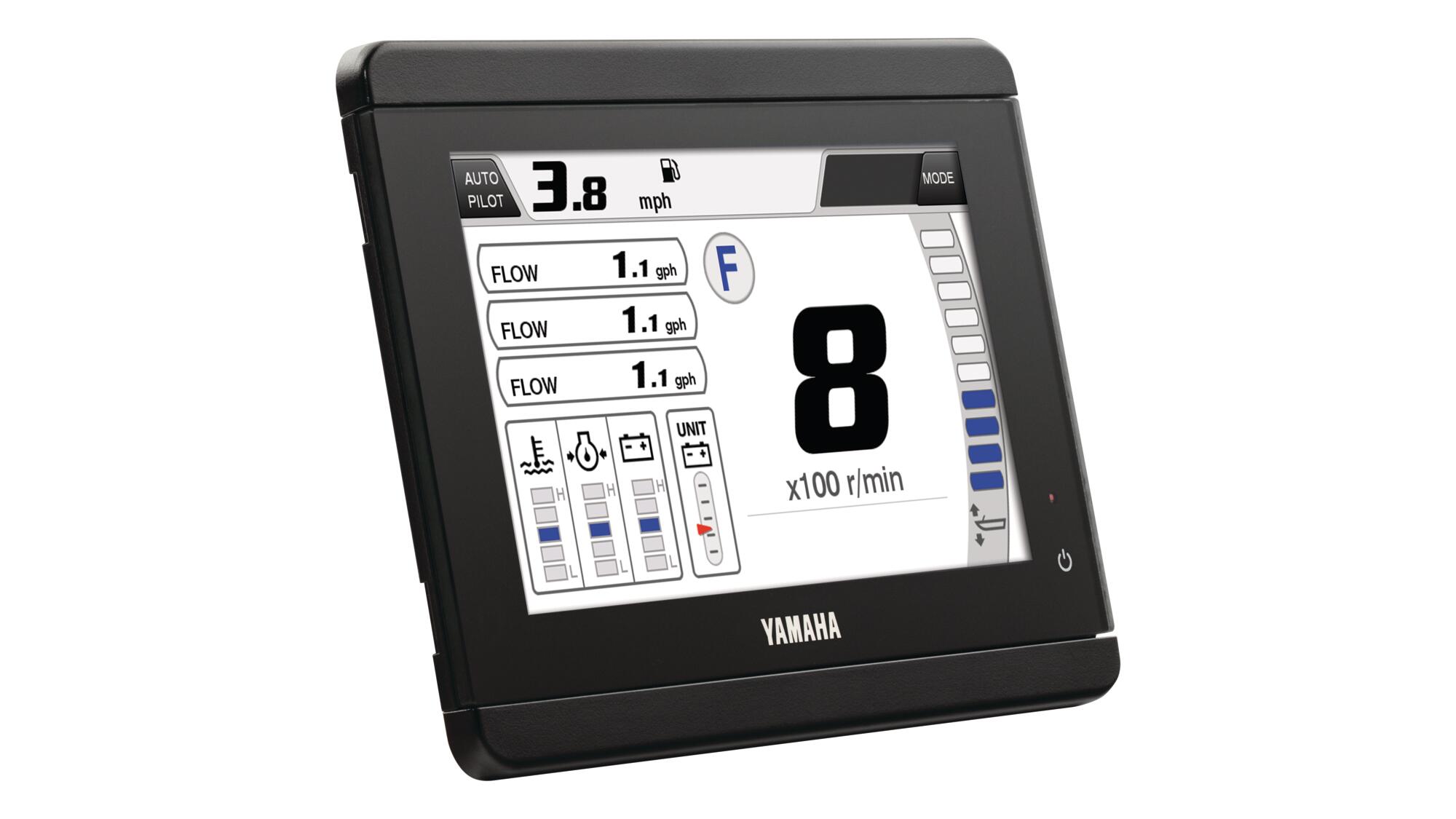

| ➢ Digital Network Gauge (6Y8/6YC) | Standard |
| ➢ Shift Dampener System (SDS) | Optional |
ELECTRIC-DRIVE TECHNICAL SPECS
| ➢ Digital Maximizer | No |
|---|---|
| ➢ Battery Meter | No |
PHOTOS
GALLERY
SERENITY
Innovative Marine Engineering
Designed for minimal noise and vibration, the V MAX SHO 150hp ensures a peaceful boating environment. Its refined operation allows for enjoyable conversations and relaxation on the water. The engine is compatible with Yamaha’s digital control systems, offering real-time monitoring and diagnostics. This integration allows for enhanced control and customization of your boating experience.
DESIGN
ENGINE

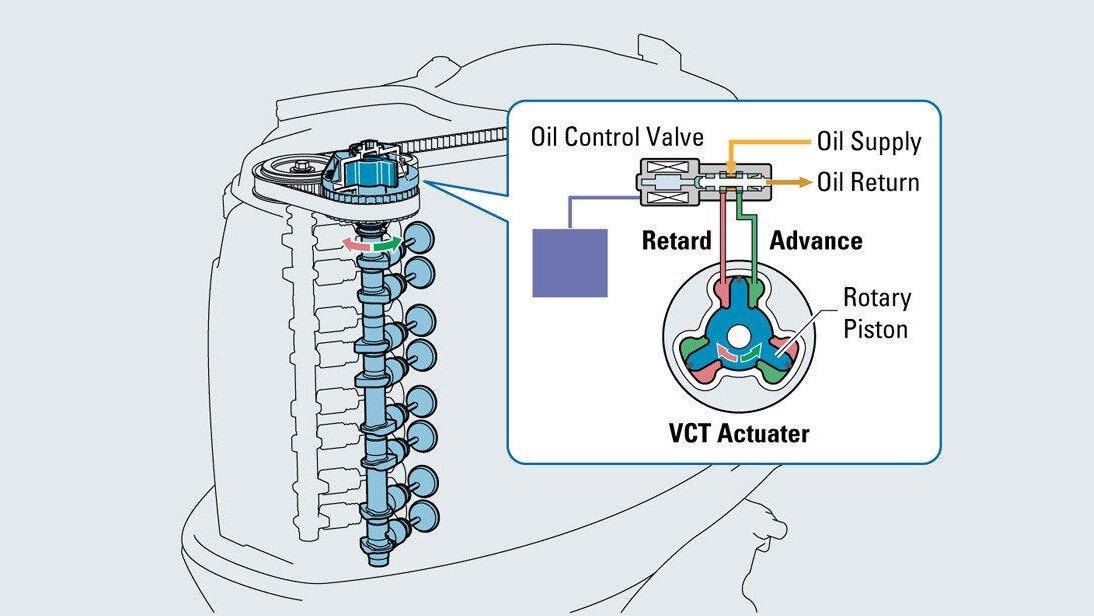

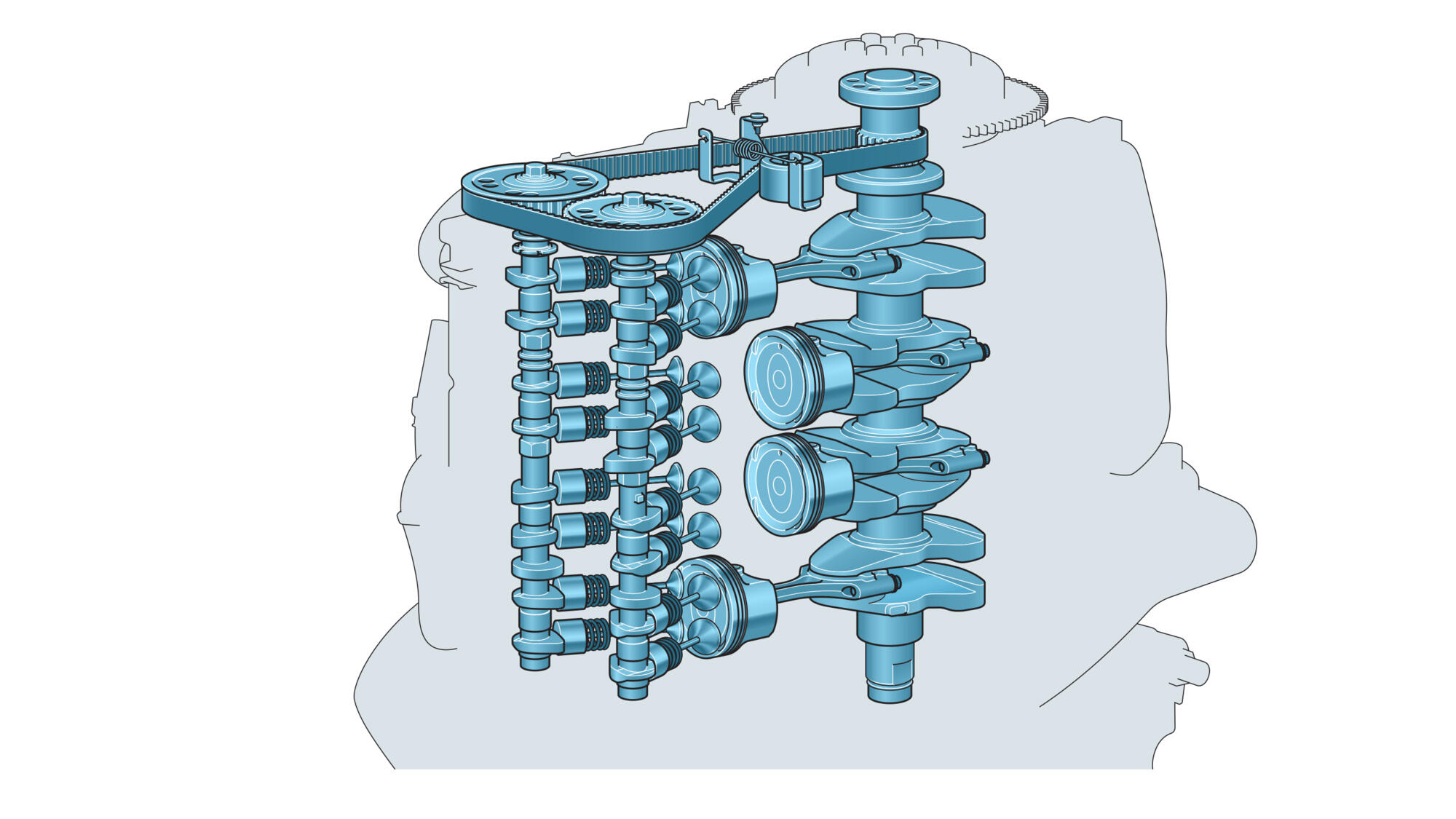

The V MAX SHO 150HP isn’t just powerful. Yamaha’s VCT technology optimizes valve timing across the RPM range, enhancing acceleration and fuel efficiency. This results in responsive throttle control and improved overall engine performance. The EFI system ensures precise fuel delivery, leading to better fuel economy and lower emissions. It also contributes to smoother starts and consistent engine performance under varying conditions.
WARRANTY
5 YEAR PROMISE
Enjoy Yamaha’s industry-leading limited warranty, offering up to 5 years of peace of mind. The V MAX SHO 150HP is built to exacting standards with proven dependability. Whether you’re navigating calm bays or deep offshore waters, Yamaha’s legacy of excellence keeps you covered.
