Meet the new benchmark in high‑power outboards: the V MAX SHO 175hp. Packing 175hp into a streamlined, easy‑rigged package, its advanced EFI, counterbalance shafts and double‑overhead cams deliver blistering hole‑shot, responsive control, and Yamaha‑trusted reliability for your next adventure.

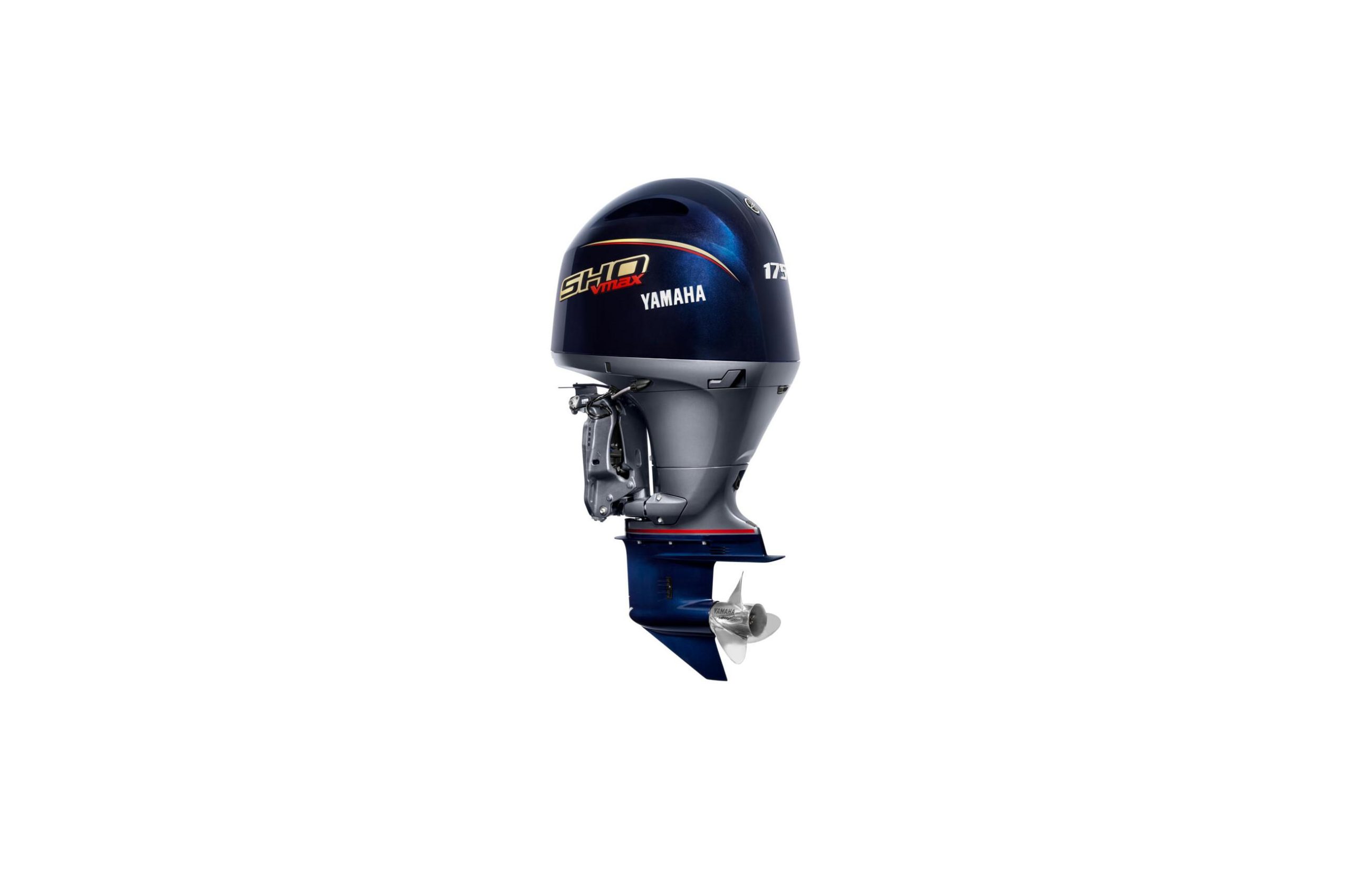

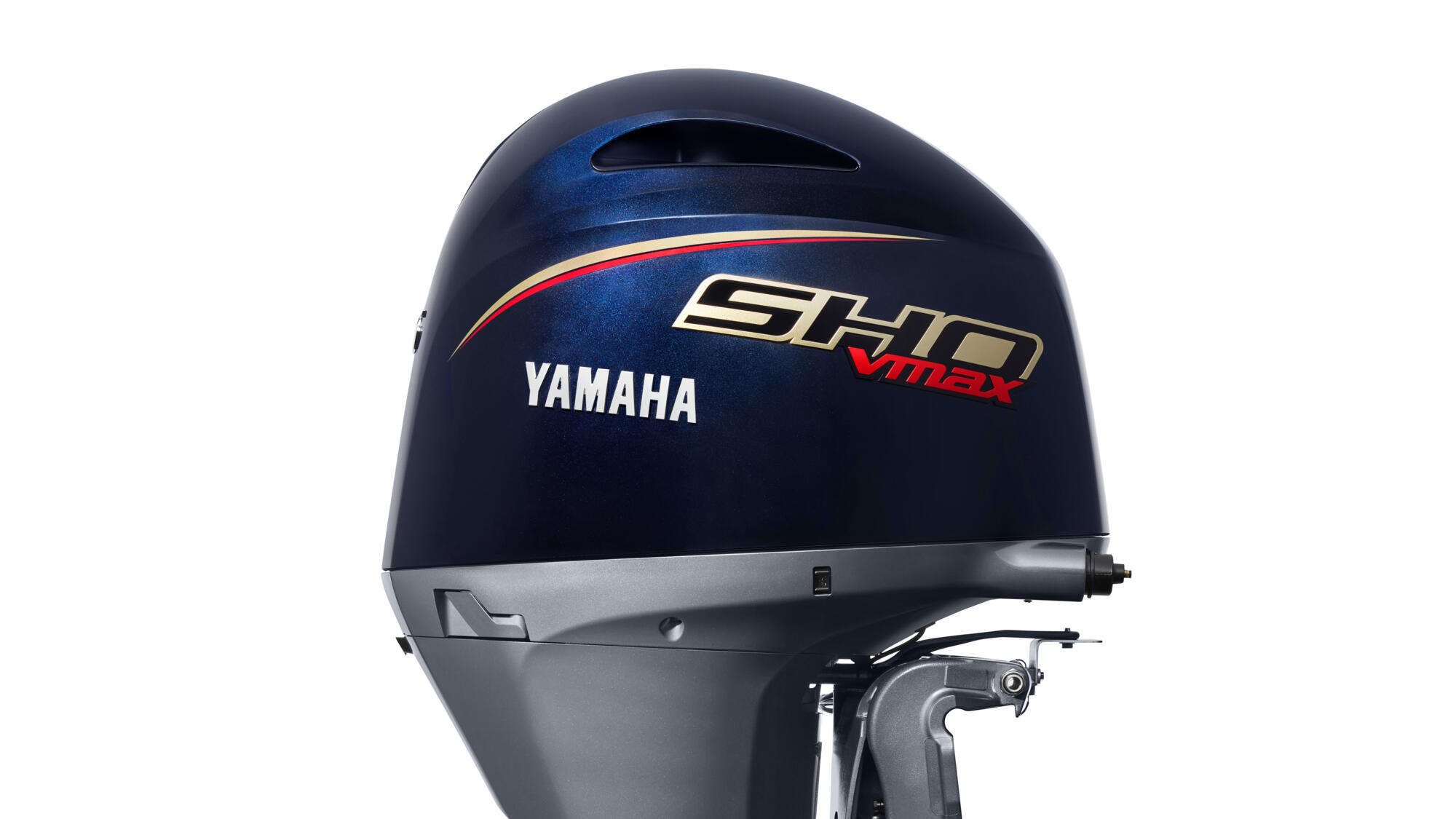

V MAX SHO 175HP
Performance, Perfected by Design
Boasting a 2.8 L inline‑four engine, Yamaha’s V MAX SHO 175hp combines race‑derived technology in a sleek, rugged package. Featuring DOHC with four valves per cylinder, VCT, and multi-point EFI, it produces 175 hp @ 5,500 rpm while remaining remarkably compact. Performance tests show it’s over 5 mph faster than the 150hp version, with a blistering hole‑shot that stands out in its class.

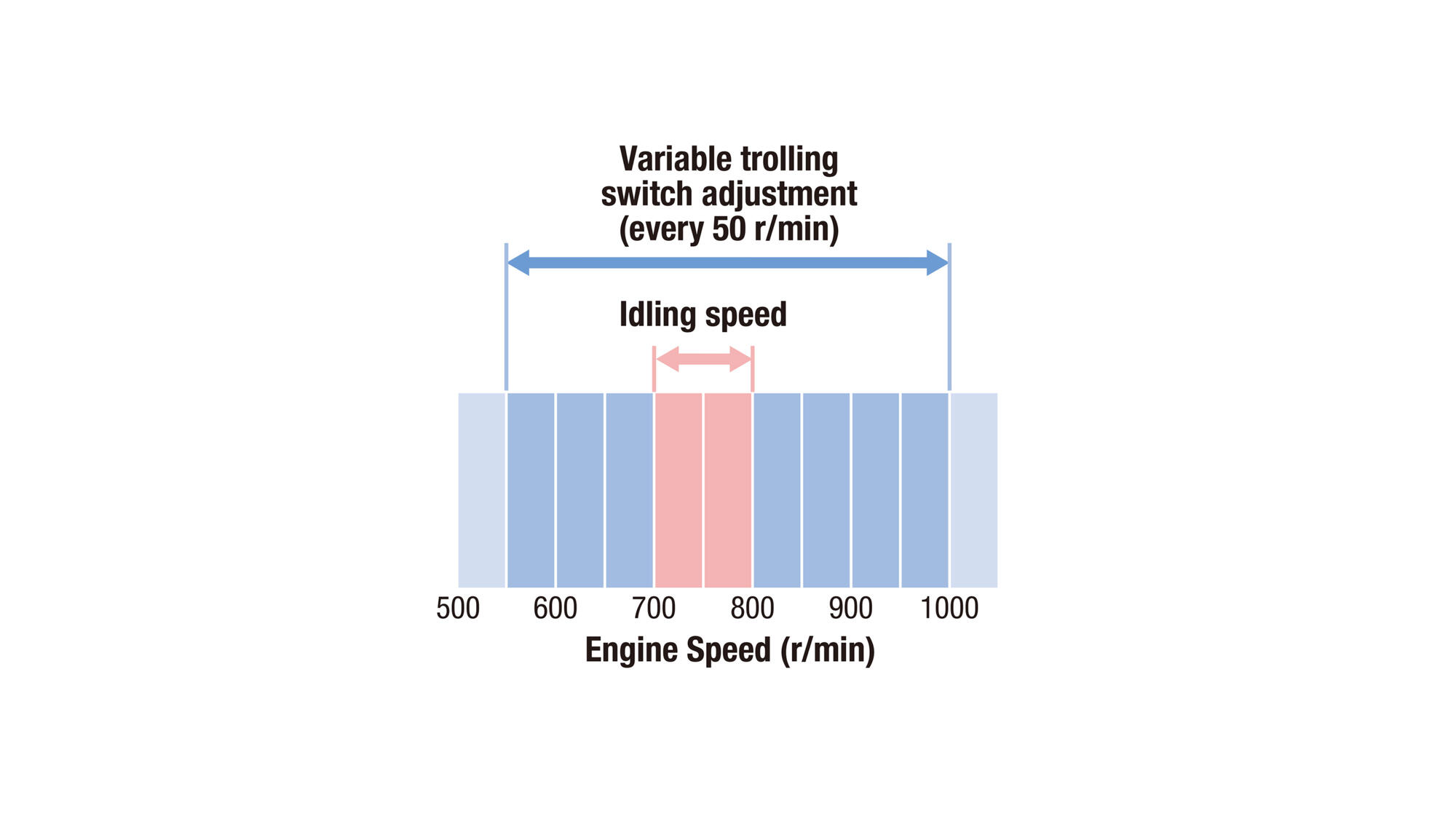

It’s also engineered to be practical—lightweight (227kg dry), smooth, and efficient. Counterbalance shafts eliminate harsh vibrations; Command‑Link gauge integration and a 50 A alternator support modern electronics; and a variable trolling RPM switch enables precise low-speed control. With a three‑year warranty and Yamaha’s reputation for rugged durability, this engine delivers refined power and long-term confidence for both fishermen and weekend boaters.
DETAILS
ABOUT V MAX SHO 175HP
ENGINE
| ➢ CATEGORY | High Power (90 – 200hp) |
|---|---|
| ➢ ENGINE TYPE | 4-stroke |
| ➢ Displacement | 2,785cc |
| ➢ No. of cylinders / Configuration | 4/in-line, 16-valve, DOHC with VCT |
| ➢ Bore x stroke | 96.0 x 96.2 |
| ➢ Prop shaft output at mid range | 128.7 kW / 175 HP |
| ➢ Full Throttle Operating Range | 5,000 – 6,000 RPM |
| ➢ Lubrication system | Wet sump |
| ➢ Fuel Induction System | EFI |
| ➢ Ignition / advance system |
TCI |
| ➢ Starter system | Electric with Prime Start™ |
| ➢ Gear ratio | 1.86 (26/14) |
DIMENSIONS
| ➢ Transom height | L: 516mm X:643mm |
|---|---|
| ➢ Oil pan capacity | 4.5 L / 4.3 L |
| ➢ Weight without propeller | 227kg |
ADDITIONAL FEATURES
| ➢ Control | Remote Control |
|---|---|

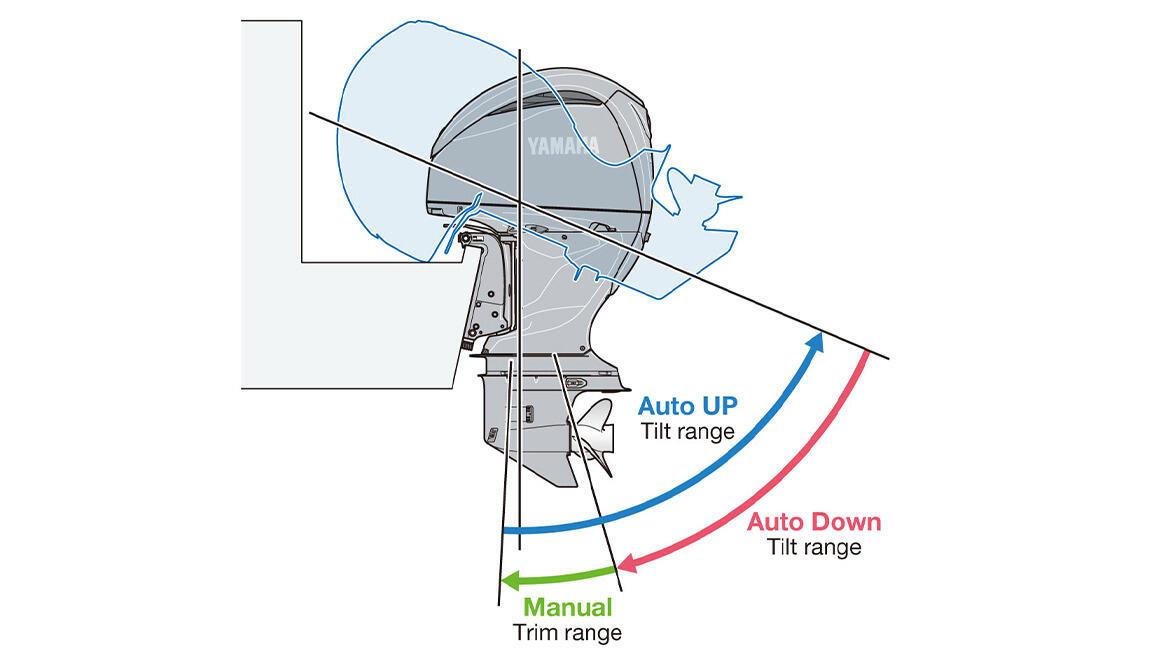

| ➢ Trim & Tilt method | Power Trim & Tilt |
| ➢ Light coil / Alternator Output | 12V – 50A w. rectifier / regulator |

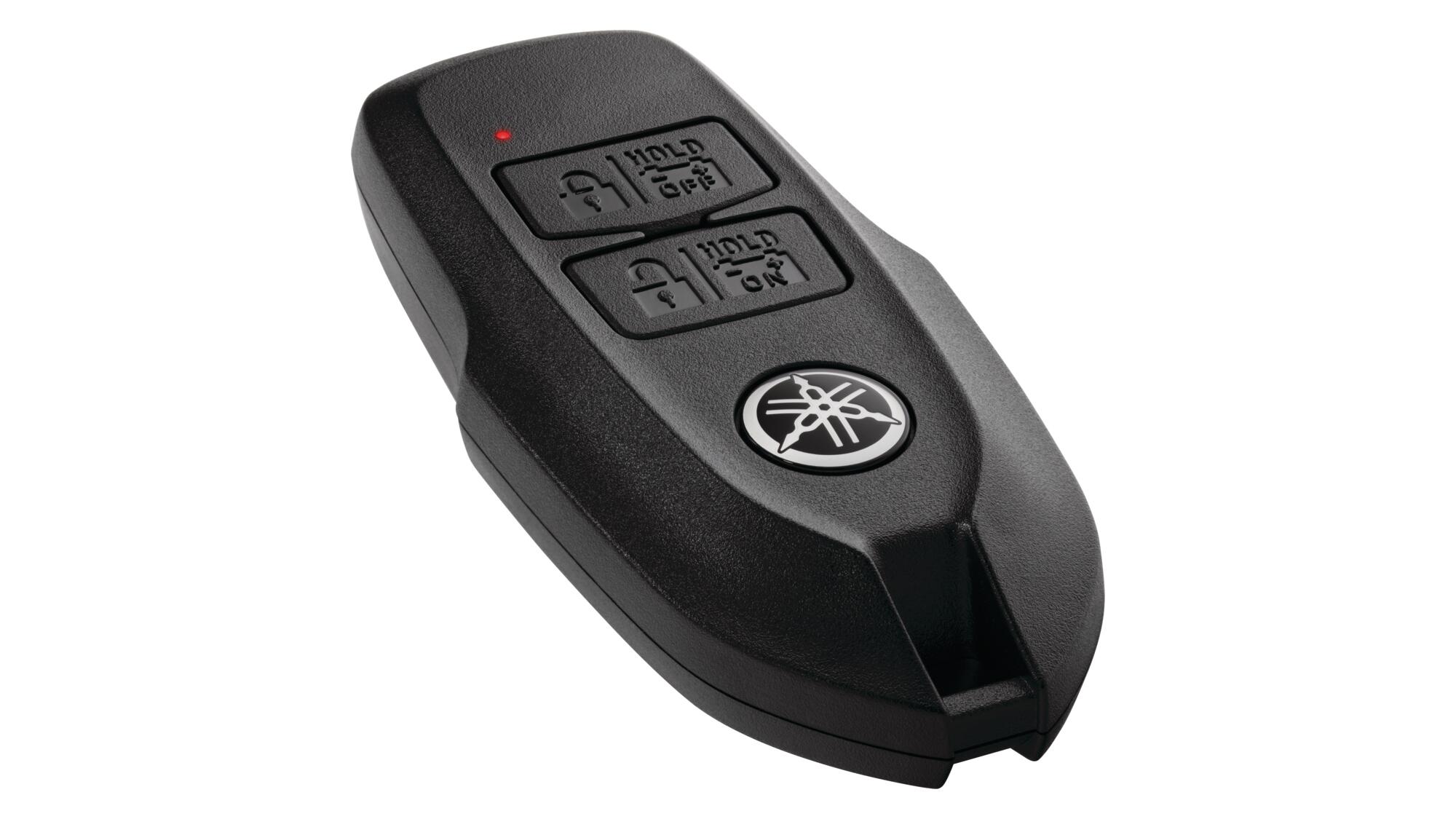

| ➢ Engine immobilizer | YCOP optional |
| ➢ Propeller | Optional |
| ➢ Variable Trolling Speed | With DN Gauges |
| ➢ Shallow Water Drive | Standard |
| ➢ Tilt limitter | Optional |
| ➢ Digital Network Gauge (6Y8/6YC) | Standard |
| ➢ Shift Dampener System (SDS) | Optional |
ELECTRIC-DRIVE TECHNICAL SPECS
| ➢ Digital Maximizer | No |
|---|---|
| ➢ Battery Meter | No |

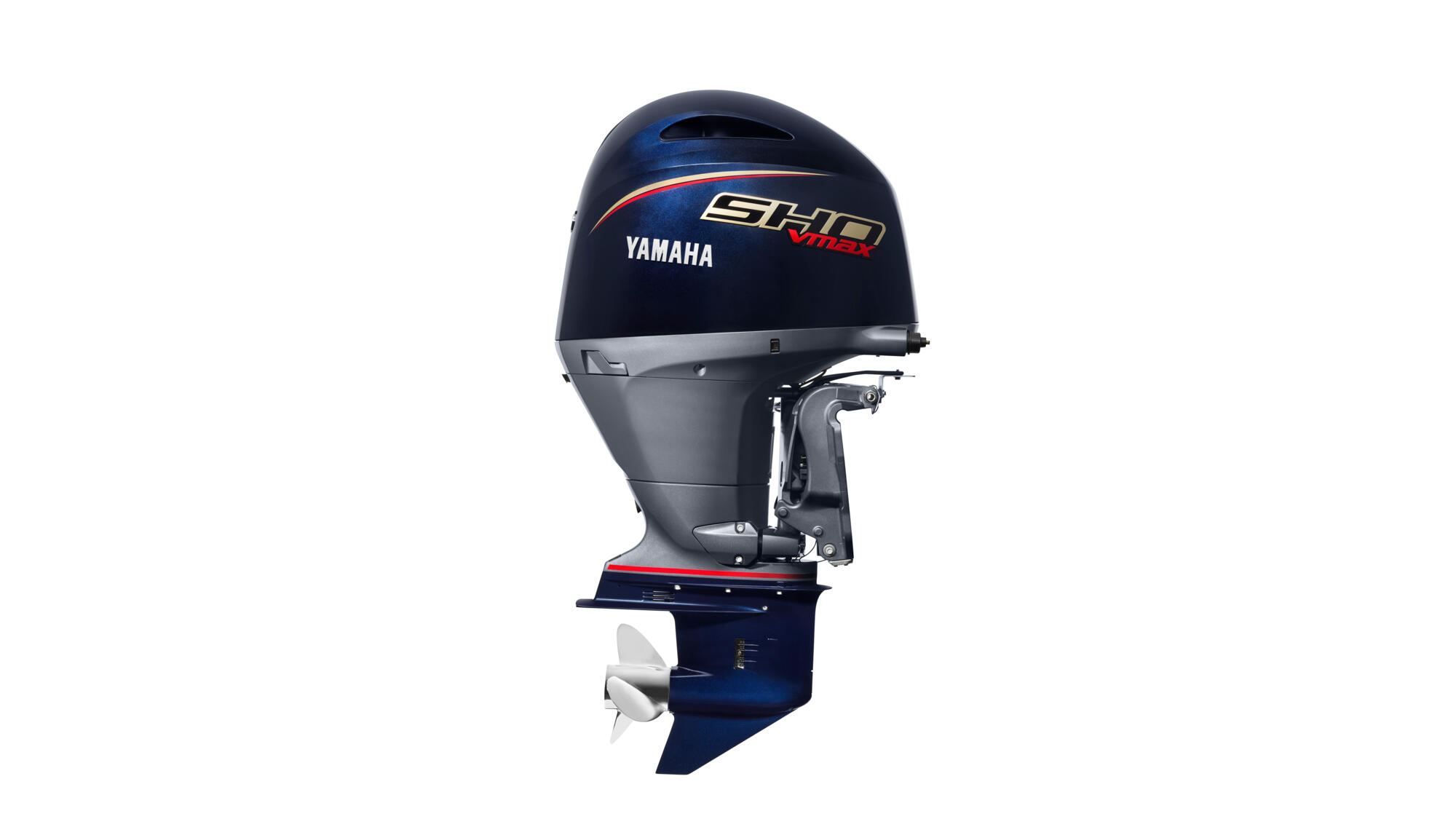

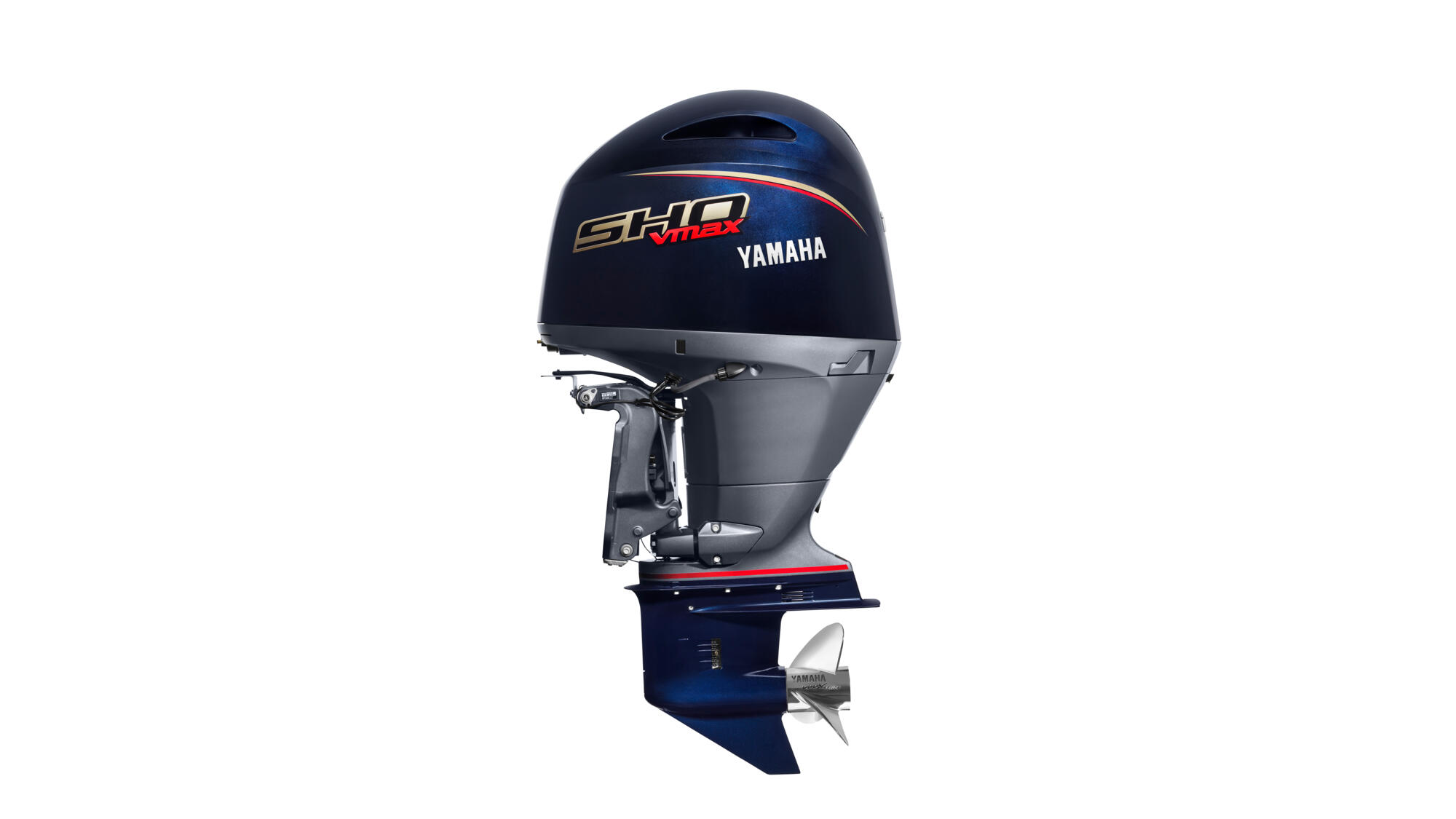

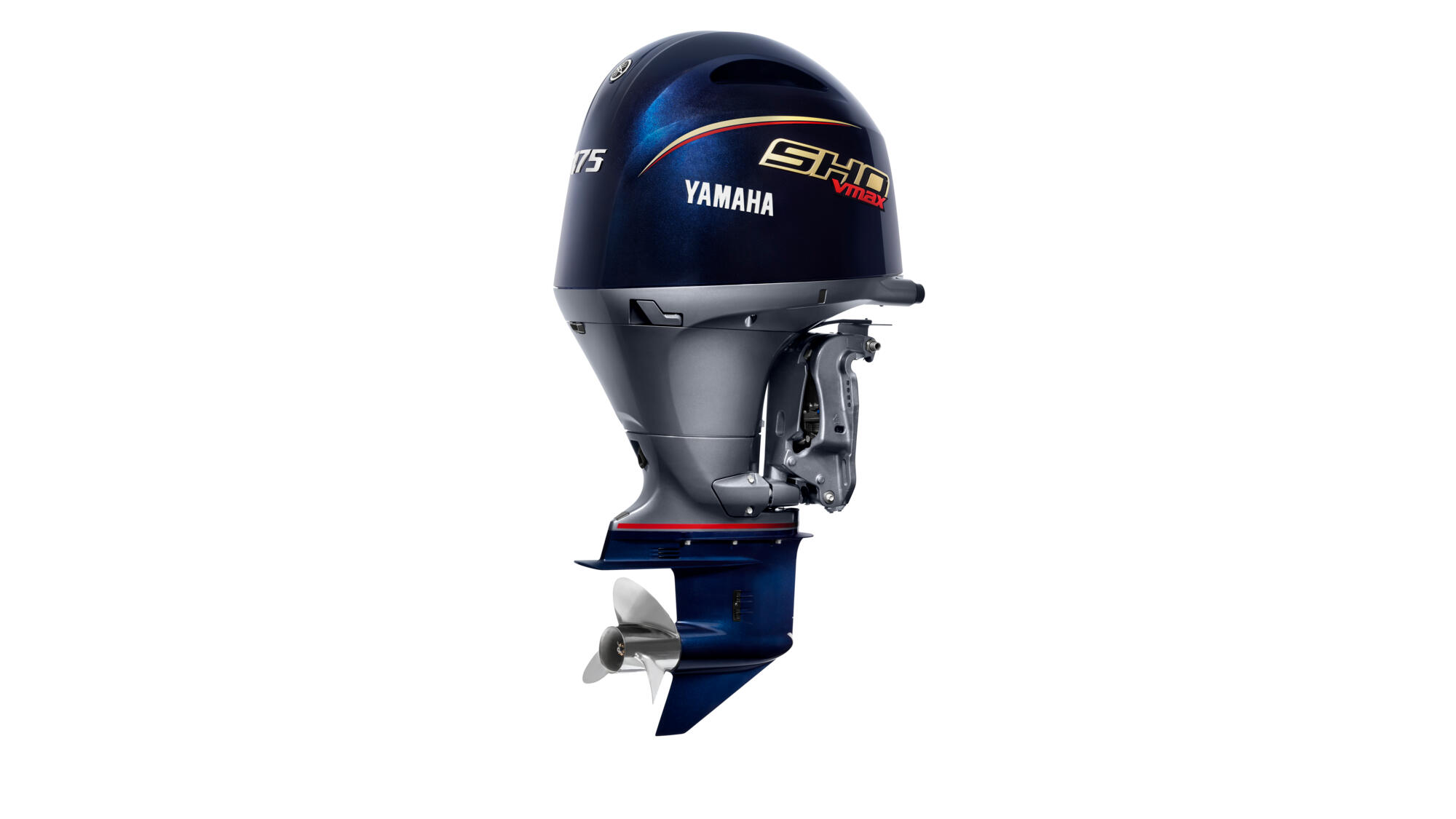

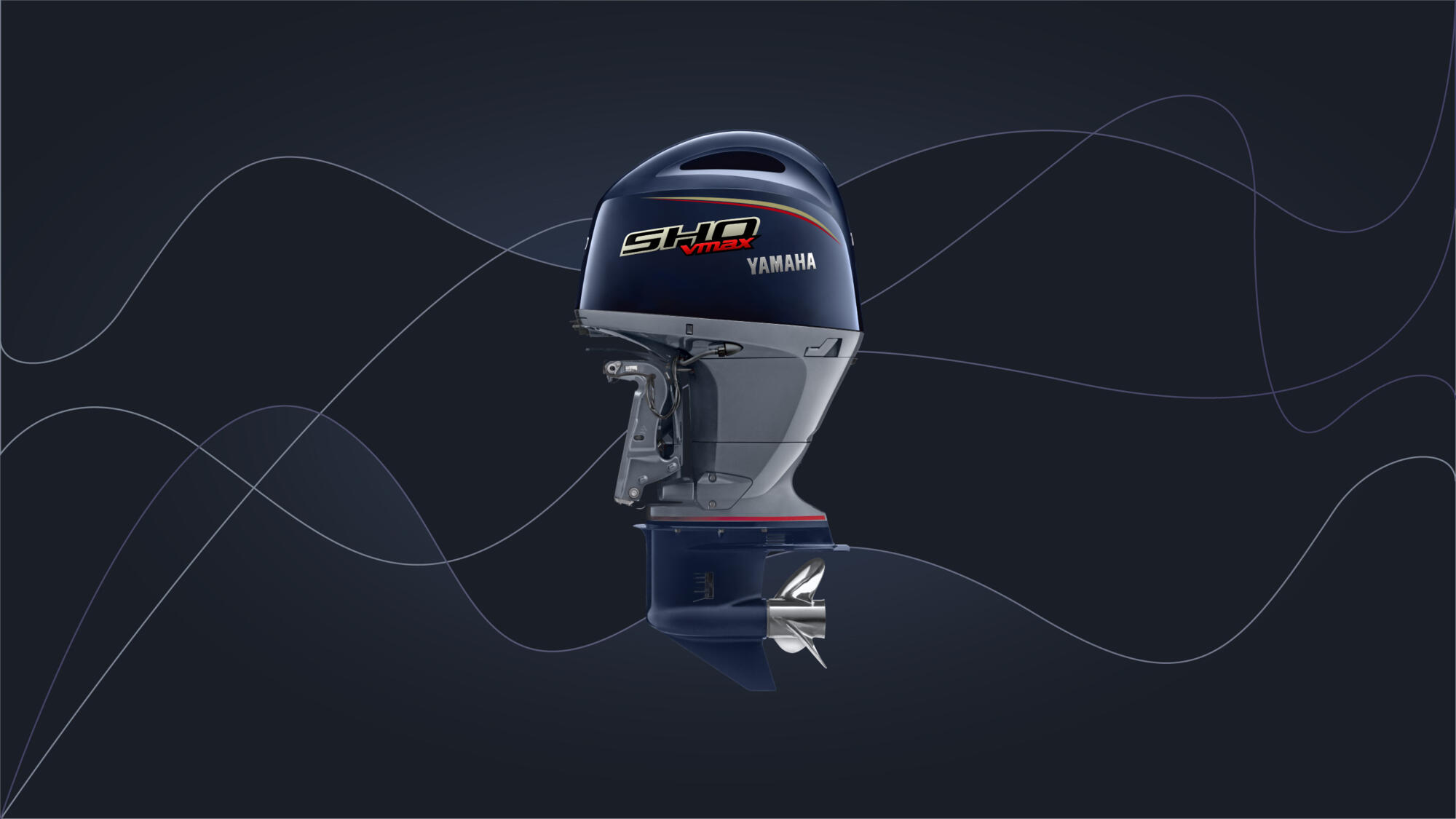

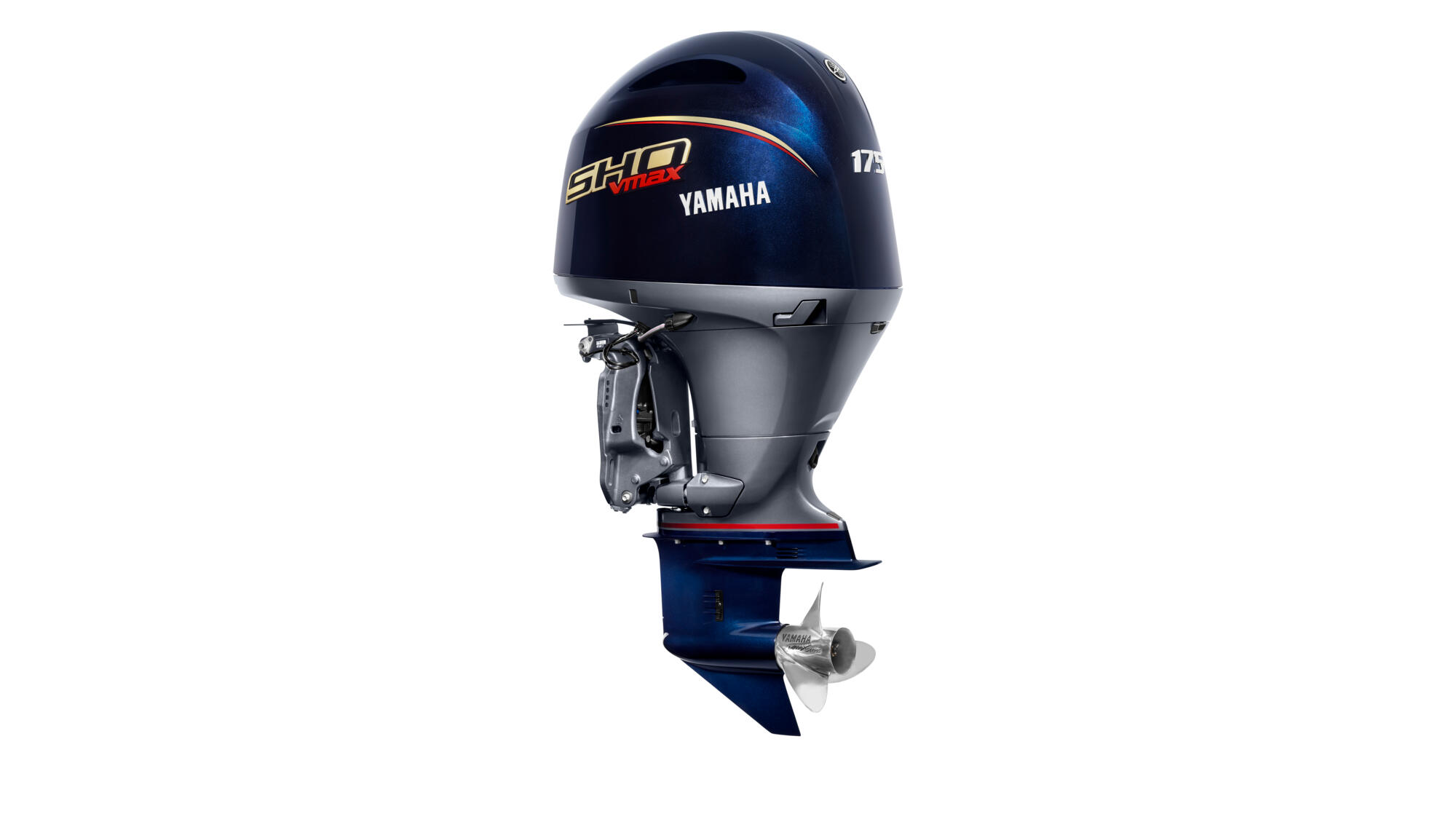

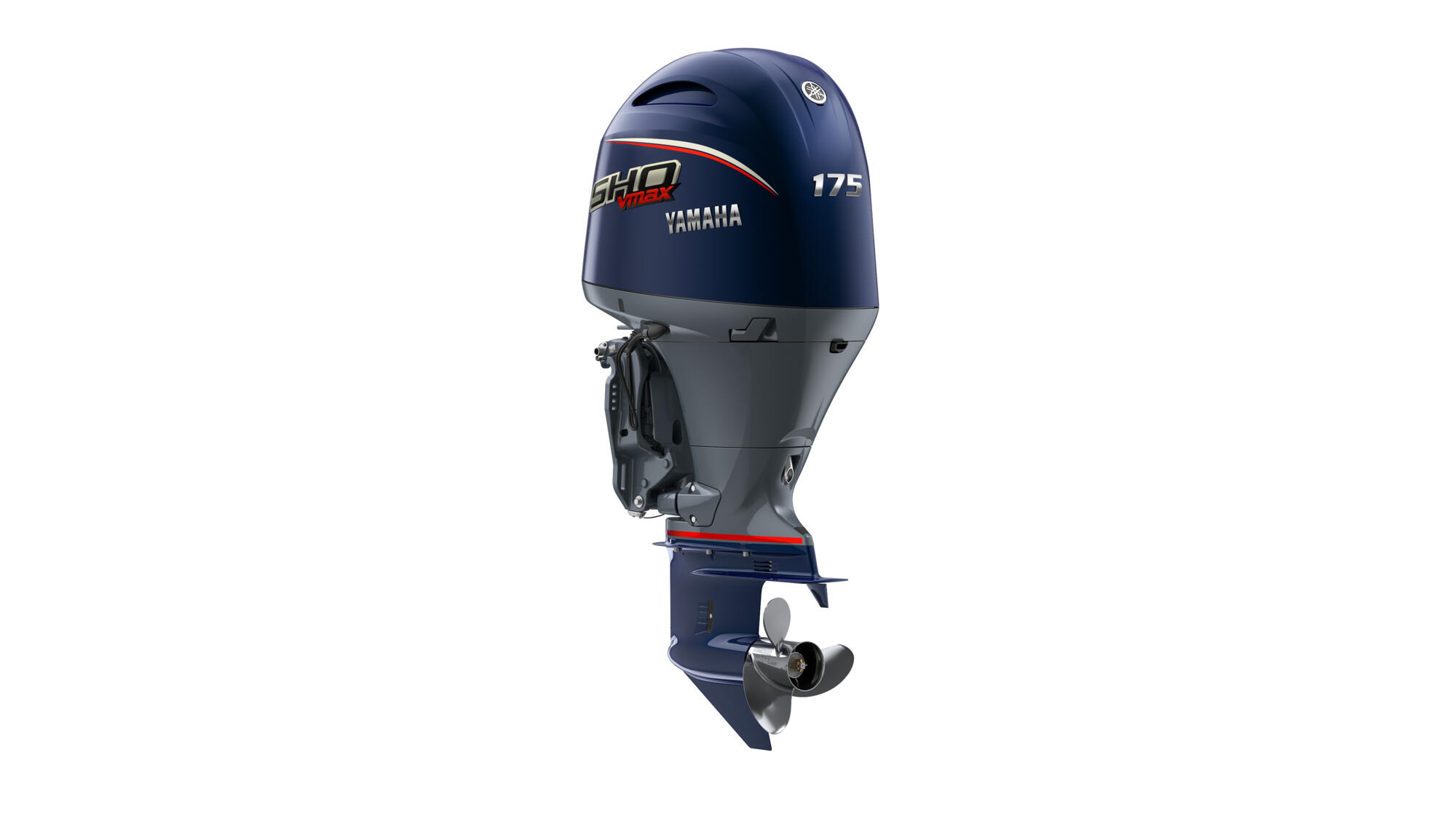

PHOTOS
GALLERY
SERENITY
Control Without Compromise
Engineered with counterbalance shafts, a wet-sump lubrication system, and Yamaha’s TCI microcomputer ignition, this four-stroke powerhouse runs incredibly smooth and quietly. Exhaust exits through the propeller, reducing surface noise. These technologies ensure refined cruising, less vibration, and maximum comfort—perfect for anglers, family outings, or long-range voyaging

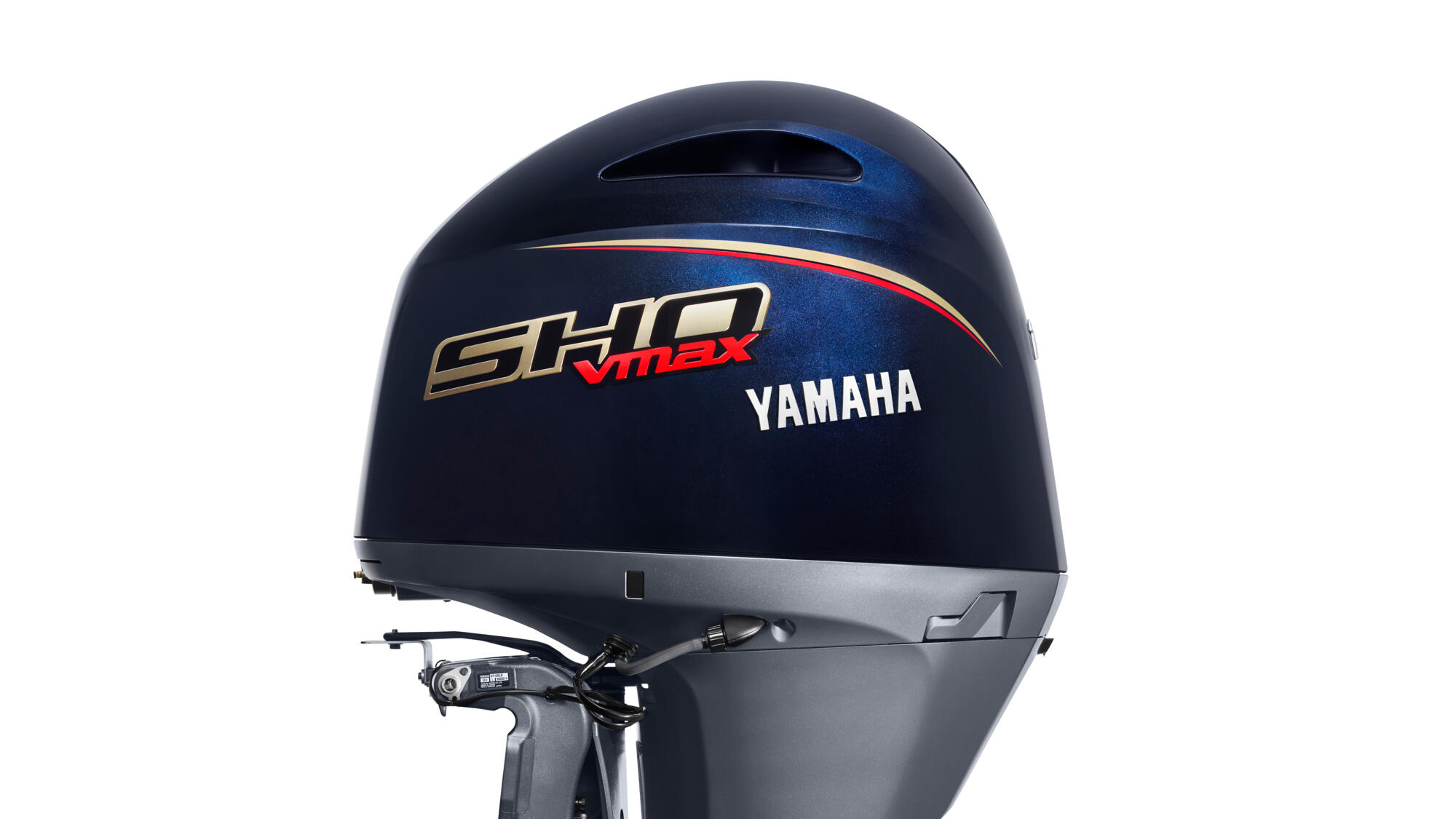

DESIGN
ENGINE
The V MAX SHO 175HP isn’t just powerful. This engine features a 2.8 L inline‑4 engine, DOHC, four valves per cylinder, and Variable Camshaft Timing (VCT). Multi-point EFI ensures precise fuel delivery, achieving up to 40% better efficiency than older carbureted models. A thermostatic cooling control, 50 A alternator, and freshwater‑flush feature add to reliability. Yamaha’s standard three-year warranty underlines its confidence in build quality—making maintenance and ownership hassle-free for years to come.
WARRANTY
5 YEAR PROMISE
Enjoy Yamaha’s industry-leading limited warranty, offering up to 5 years of peace of mind. The V MAX SHO 175HP is built to exacting standards with proven dependability. Whether you’re navigating calm bays or deep offshore waters, Yamaha’s legacy of excellence keeps you covered.
