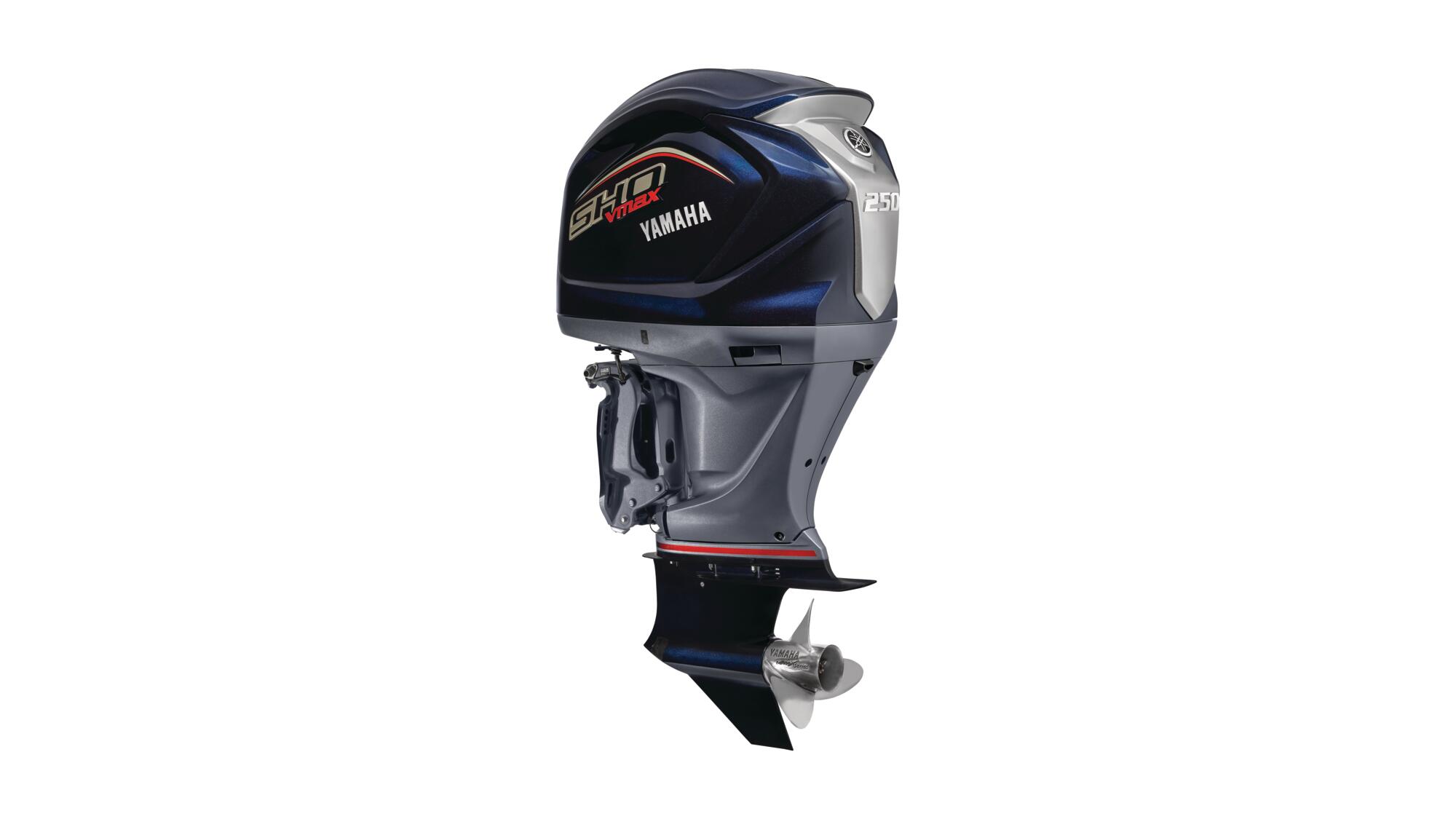

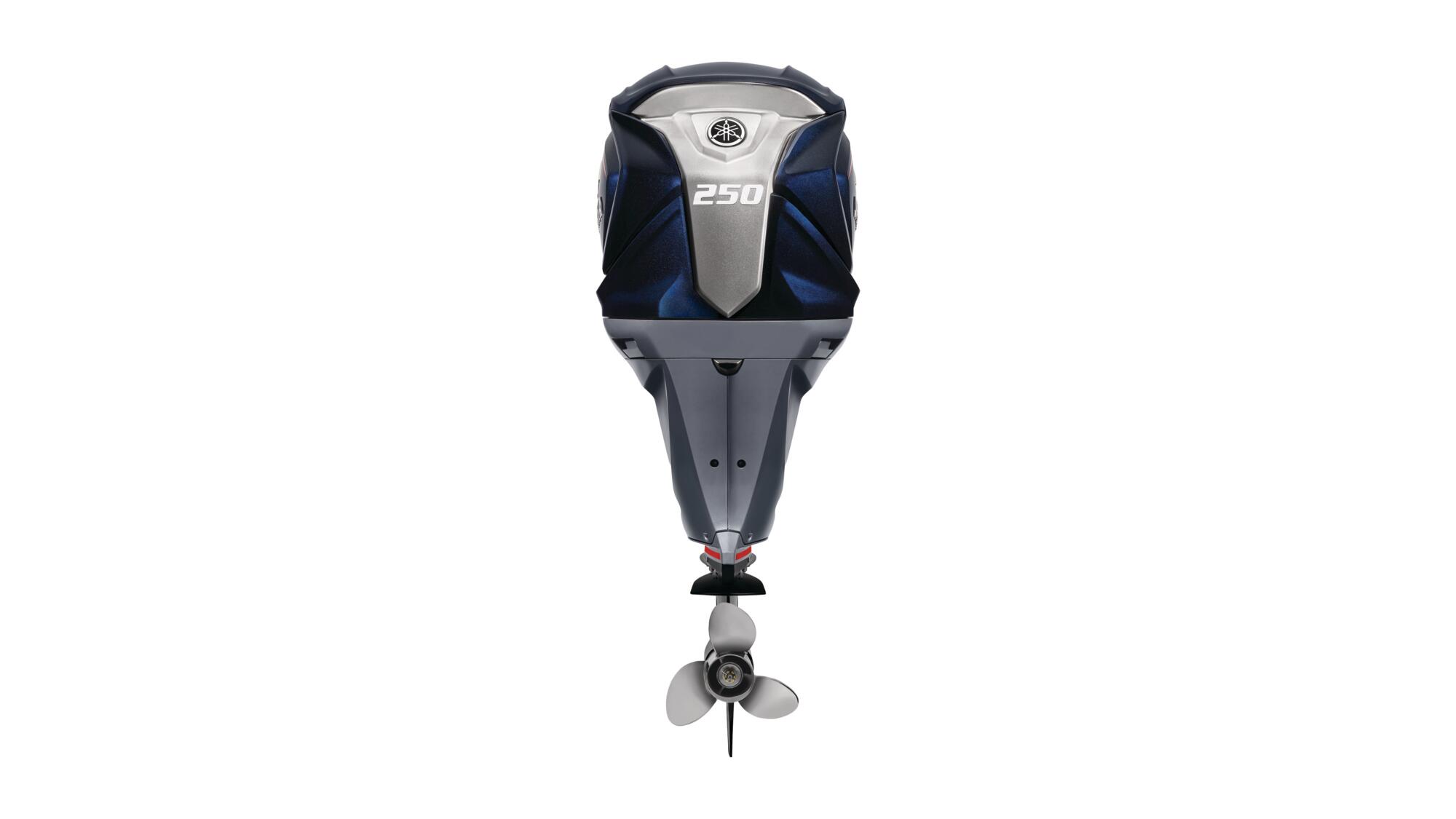

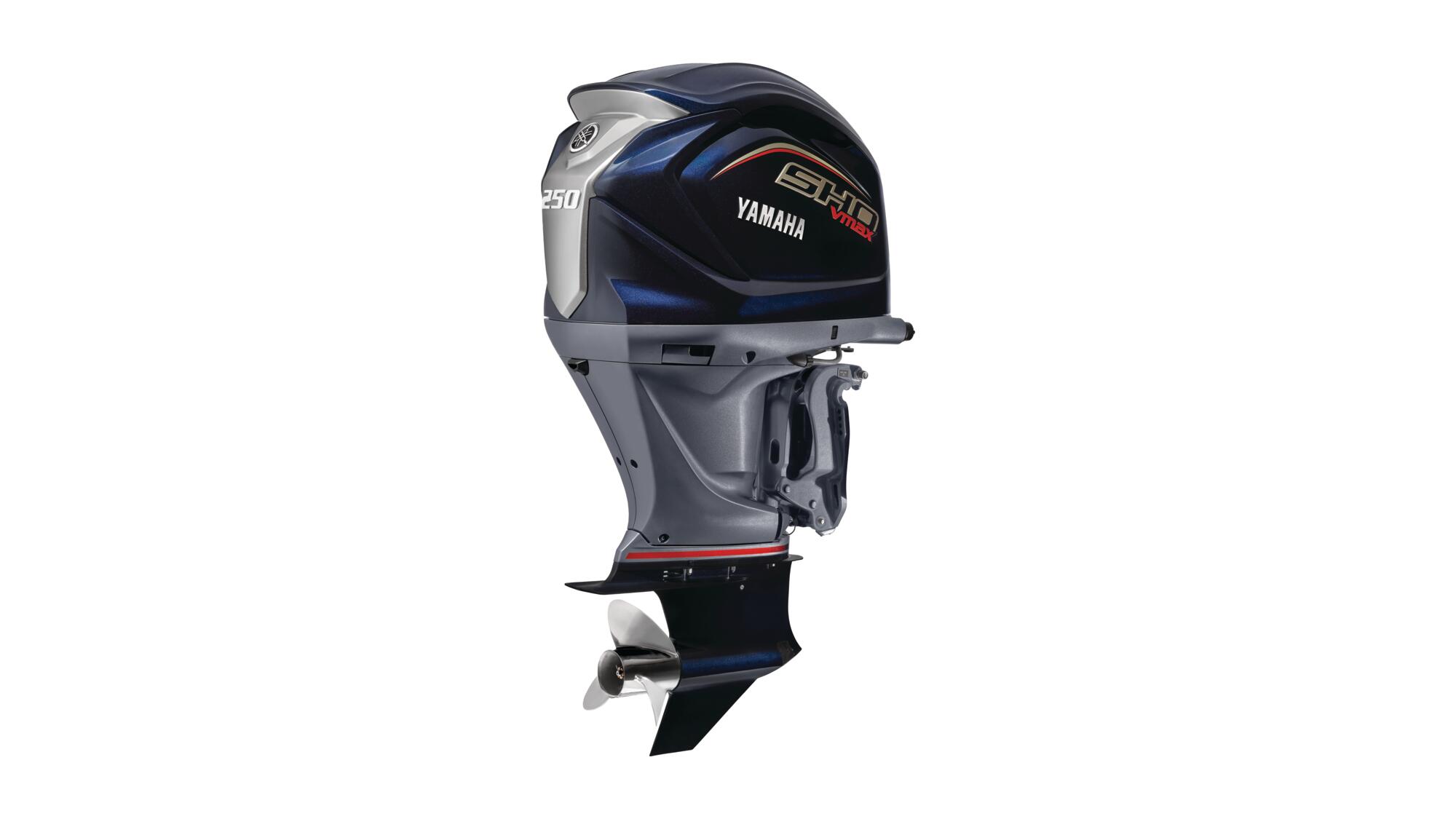

V MAX SHO 250HP
Hole shot on demand
The racing DNA is in the hardware. Plasma-fused sleeveless cylinders keep the block light and the revs rising quickly, while Variable Camshaft Timing shifts valve timing on the move to swell low- and mid-range torque without blunting the top end. Wind it into the 5000 – 6000 r/min band and 183.8 kW arrives all at once.
Lightness is the other half of it. At 264 kg dry the sleeveless block gives performance hulls the lift and handling they were drawn for, and a 1.75 (21/12) gear ratio sends it straight through to the prop. Bore and stroke are dead square at 96.0 × 96.0 mm, compression sits at 10.3:1, and electronic fuel injection with TCI ignition holds a clean spark from a 650 – 750 r/min idle to wide open.
DETAILS
ABOUT V MAX SHO 250HP
ENGINE
| ➢ CATEGORY | Premium Marine Engines |
|---|---|
| ➢ Engine type | 24-Valve, DOHC V6 |
| ➢ Displacement | 4169 cc |
| ➢ Bore x stroke | 96.0 × 96.0 mm |
| ➢ Compression ratio | 10.3 :1 |
| ➢ Fuel induction system | Fuel injection |
| ➢ Lubrication system | Wet sump |
| ➢ Engine oil capacity | 6.7 L/ 6.4 L (with / without oil filter replacement) |
| ➢ Ignition / advance system | TCI |
| ➢ Alternator | 70 A (battery charging: 57 A) |
DIMENSIONS
| ➢ Overall length | 1020 mm |
|---|---|
| ➢ Overall width | 672 mm |
| ➢ Overall height | X: 1891 mm |
| ➢ Engine transom height | X: 643 mm |
| ➢ Steering angle | 32 + 32 degree |
| ➢ Dry weight | 264 kg |
ADDITIONAL FEATURES
| ➢ Maximum propeller shaft output | 183.8 kW |
|---|---|
| ➢ Full throttle operating range | 5000 – 6000 r/min |
| ➢ Idling speed | 650 – 750 r/min |
| ➢ Shallow water drive | PTT: variable position |
| ➢ Gear shift | F-N-R |
| ➢ Gear ratio | 1.75 (21/12) |
| ➢ Gear oil capacity | 1.040 L |
SERENITY
Composure between the bursts

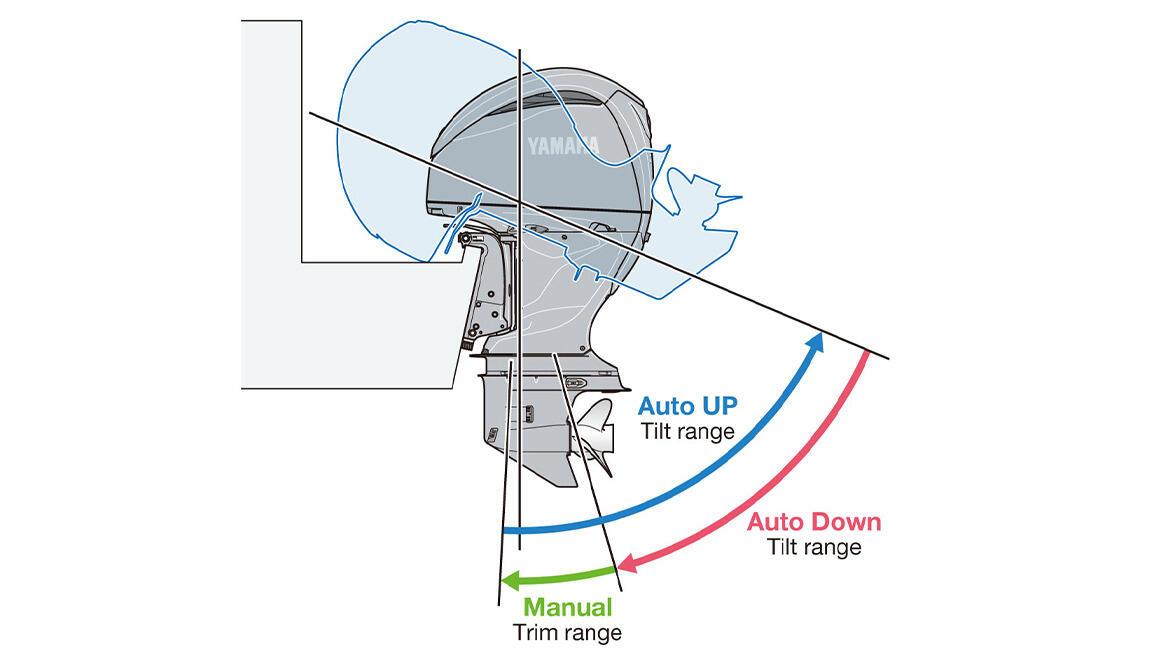

Power Trim & Tilt with TotalTilt™ runs the leg to full up or full down without you holding anything, while the tilt limiter quietly stops the cowling meeting the transom — you may never notice it working. Shallow water drive holds the leg at any variable position for skinny water, 32 + 32 degree steering keeps turns tight, and a 70 A alternator — 57 A of it charging — feeds the electronics.
DESIGN
ENGINE

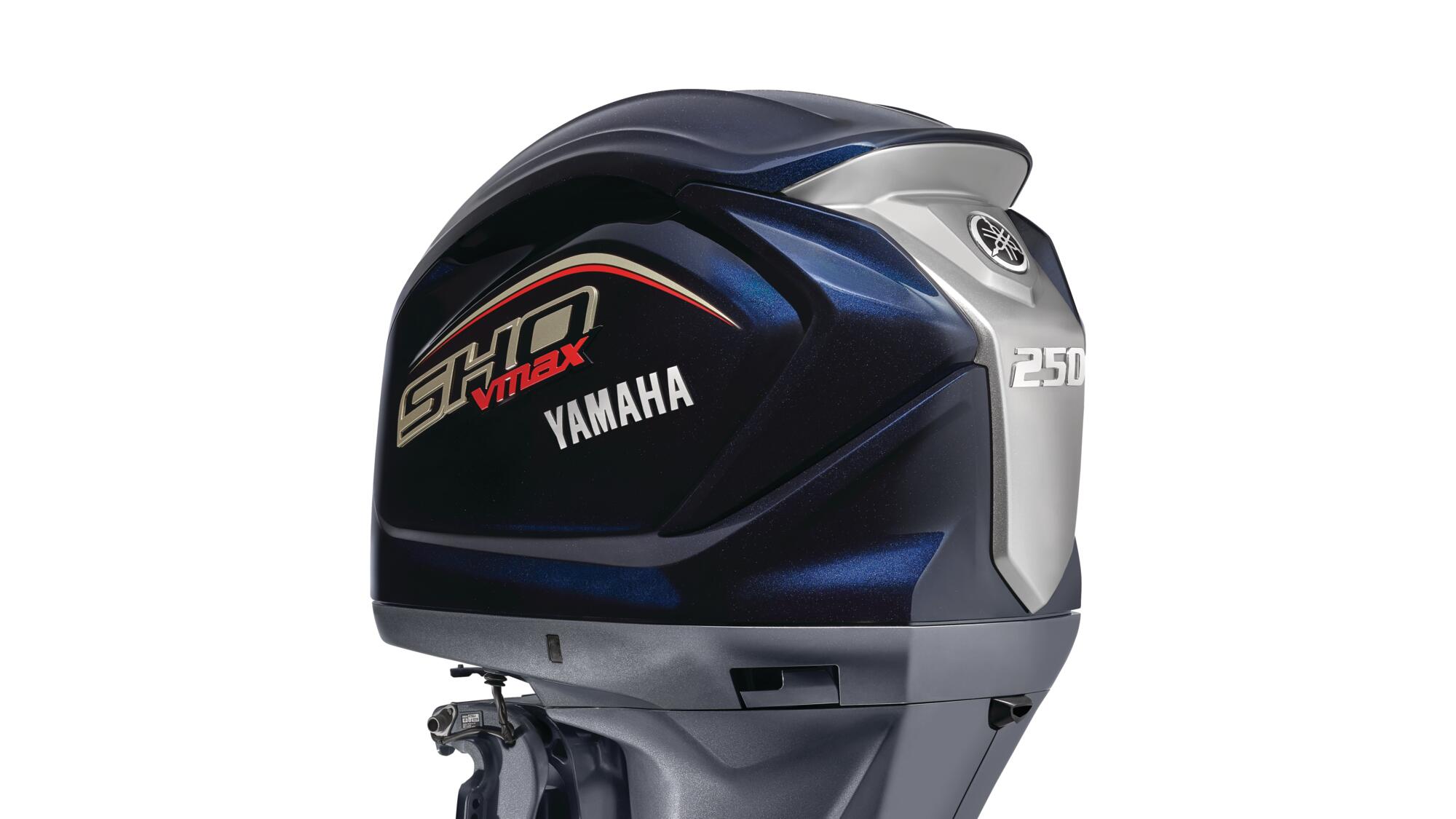

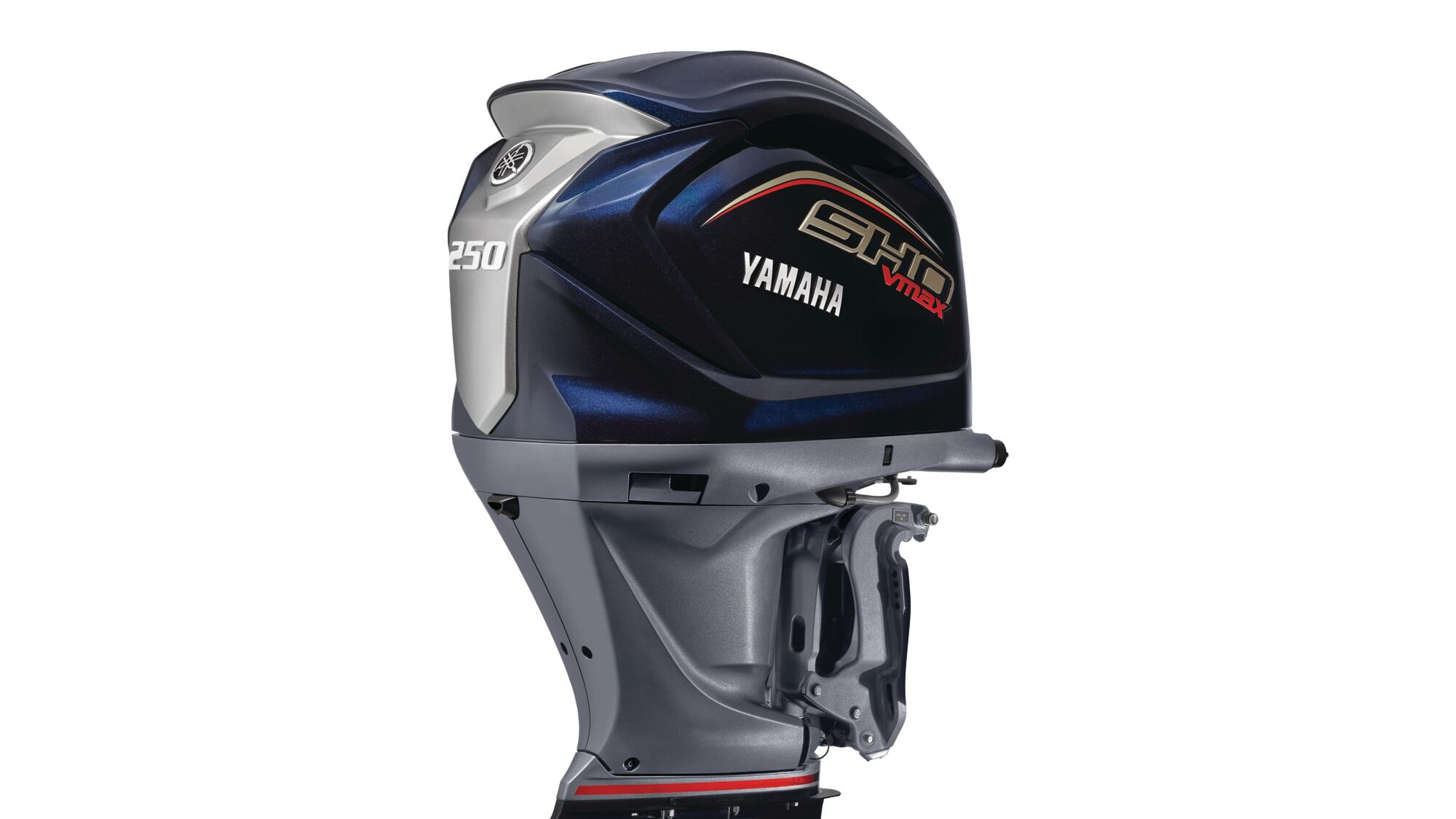

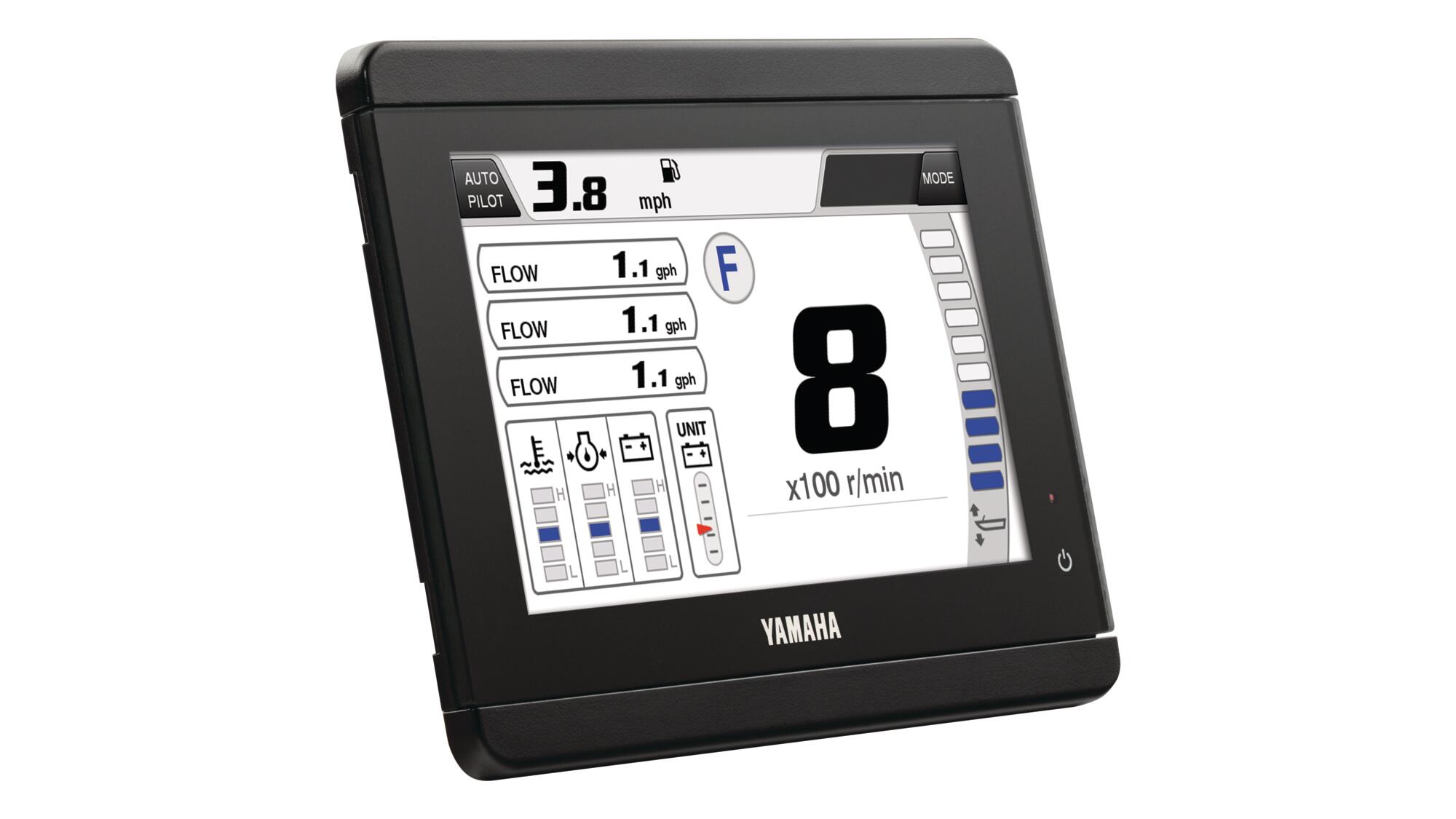

Aggressive cowling lines and bold graphics make the V MAX SHO 250HP part of the boat’s attitude rather than machinery bolted to the transom — the look is a promise the engine keeps. At the helm, CL5 colour instrumentation puts performance data, system info and warnings on a 5-inch full-colour TFT, with adjustable brightness and an anti-dazzle coating for glare-heavy afternoons.
WARRANTY
5 YEAR PROMISE
Enjoy Yamaha’s industry-leading limited warranty, offering up to 5 years of peace of mind. The V MAX SHO 250HP is built to exacting standards with proven dependability. Whether you’re navigating calm bays or deep offshore waters, Yamaha’s legacy of excellence keeps you covered.
